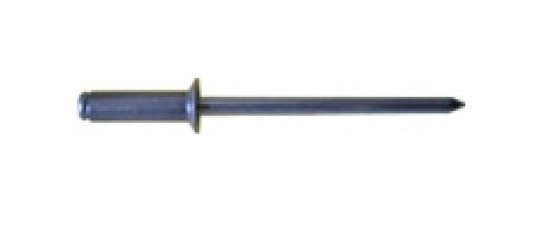

4.0mm x 12.0mm Open End Countersunk Blind Rivet
4.0mm x 12.0mm Open End Countersunk Blind Rivet
SKU:OPE-9e3698
High-quality 4.0mm x 12.0mm blind rivet for secure and efficient fastening in diverse applications.
Regular price
$65.99
Regular price
Sale price
$65.99
Unit price
per
Initiate Order
4.0mm x 12.0mm Open End Countersunk Blind Rivet
$65.99
Quantity: 1
Claim Your Seller Account
4.0mm x 12.0mm Open End Countersunk Blind Rivet
$65.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 4.0mm x 12.0mm Open End Countersunk Blind Rivet by Ornit is a high-quality fastening solution designed for durability and precision. Constructed with Aluminum Alloy body material and Zinc Plated Chromium VI Free mandrel material, it offers exceptional shear and tensile forces of 100kgf and 160kgf respectively. With a natural body finish and a sleek countersunk head style, this rivet provides a secure grip range of 5.5mm to 7.5mm. Ideal for various applications requiring a reliable and efficient fastening method.
Product Specifications
Nominal Dimensions Body Length
12.0 mm | 0.472 in
Nominal Dimensions Diameter
4.0 mm
Nominal Dimensions Drillhole Size
4.1 mm | 0.161 in
Nominal Dimensions Head Diameter
7.2 mm | 0.283 in
Nominal Dimensions Head Thickness
1.10 mm | 0.043 in
Nominal Dimensions Mandrel Diameter
2.31 mm | 0.091 in
Nominal Dimensions Maximum Grip Range
7.5 mm | 0.295 in
Nominal Dimensions Minimum Grip Range
5.5 mm | 0.217 in
Nominal Forces Nominal Shear Force
100 kgf | 220 lbf
Nominal Forces Nominal Tensile Force
160 kgf | 352 lbf
Technical Specs Body Finish
Natural
Technical Specs Body Material
Aluminum Alloy (2.5 mg) to AA 5052
Technical Specs Brands
Ornit
Technical Specs Carton Quantity
6000
Technical Specs Head Style
Countersunk
Technical Specs Mandrel Finish
Zinc Plated Chromium (Cr) VI Free
Technical Specs Mandrel Material
Low Carbon Steel SAE 1006-1022
