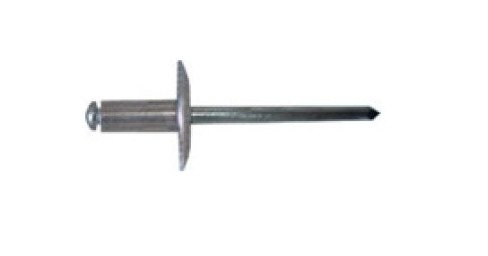

4.0mm x 12.0mm Open End Large Blind Rivet
4.0mm x 12.0mm Open End Large Blind Rivet
SKU:OPE-9be2d3
High-quality 4.0mm x 12.0mm Large Blind Rivet by Ornit, perfect for industrial use.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
4.0mm x 12.0mm Open End Large Blind Rivet
$89.99
Quantity: 1
Claim Your Seller Account
4.0mm x 12.0mm Open End Large Blind Rivet
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 4.0mm x 12.0mm Open End Large Blind Rivet by Ornit is a top-quality fastening solution made from Aluminum Alloy AA 5052. With a large head diameter of 12.0mm and a maximum grip range of 7.5mm, it offers exceptional shear and tensile forces of 100 kgf and 160 kgf respectively. Ideal for industrial applications requiring secure and durable fastening.
Product Specifications
Nominal Dimensions Body Length
12.0 mm | 0.472 in
Nominal Dimensions Diameter
4.0 mm
Nominal Dimensions Drillhole Size
4.1 mm | 0.161 in
Nominal Dimensions Head Diameter
12.0 mm | 0.472 in
Nominal Dimensions Head Thickness
1.5 mm | 0.059 in
Nominal Dimensions Mandrel Diameter
2.31 mm | 0.091 in
Nominal Dimensions Maximum Grip Range
7.5 mm | 0.295 in
Nominal Dimensions Minimum Grip Range
5.5 mm | 0.217 in
Nominal Forces Nominal Shear Force
100 kgf | 220 lbf
Nominal Forces Nominal Tensile Force
160 kgf | 352 lbf
Technical Specs Body Finish
Natural
Technical Specs Body Material
Aluminum Alloy (2.5 mg) to AA 5052
Technical Specs Brands
Ornit
Technical Specs Carton Quantity
4000
Technical Specs Head Style
Large
Technical Specs Mandrel Finish
Zinc Plated Chromium (Cr) VI Free
Technical Specs Mandrel Material
Low Carbon Steel SAE 1006-1022
