4.0mm x 12.0mm Steel Dome Blind Rivet
4.0mm x 12.0mm Steel Dome Blind Rivet
SKU:OPE-3fbd74
High-strength 4.0mm x 12.0mm Steel Dome Blind Rivet with Zinc Plated Finish. Ideal for secure fastening in diverse industries.
Regular price
$45.99
Regular price
Sale price
$45.99
Unit price
per
Initiate Order
4.0mm x 12.0mm Steel Dome Blind Rivet
$45.99
Quantity: 1
Claim Your Seller Account
4.0mm x 12.0mm Steel Dome Blind Rivet
$45.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

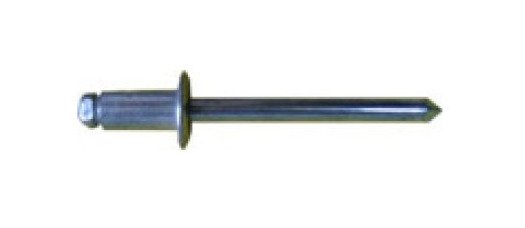

The 4.0mm Diameter and 12.0mm Body Length Steel Dome Blind Rivet by Ornit is a durable fastening solution made from Low Carbon Steel. With a Zinc Plated Chromium VI Free finish, it offers a secure grip range of 5.5mm to 7.5mm. Meeting stringent industry standards for shear and tensile forces, this rivet ensures reliable performance in various applications.
Product Specifications
Nominal Dimensions Body Length
12.0 mm | 0.472 in
Nominal Dimensions Diameter
4.0 mm
Nominal Dimensions Drillhole Size
4.1 mm | 0.161 in
Nominal Dimensions Head Diameter
7.8 mm | 0.307 in
Nominal Dimensions Head Thickness
1.15 mm | 0.045 in
Nominal Dimensions Mandrel Diameter
2.31 mm | 0.091 in
Nominal Dimensions Maximum Grip Range
7.5 mm | 0.295 in
Nominal Dimensions Minimum Grip Range
5.5 mm | 0.217 in
Nominal Forces Nominal Shear Force
190 kgf | 418 lbf
Nominal Forces Nominal Tensile Force
280 kgf | 616 lbf
Technical Specs Body Finish
Natural
Technical Specs Body Material
Low Carbon Steel, SAE 1006 or Equivalent
Technical Specs Brands
Ornit
Technical Specs Carton Quantity
6000
Technical Specs Head Style
Steel Dome
Technical Specs Mandrel Finish
Zinc Plated Chromium (Cr) VI Free
Technical Specs Mandrel Material
Low Carbon Steel SAE 1006-1022
