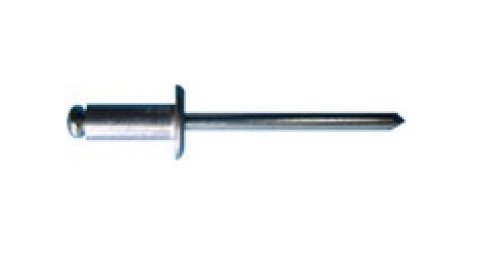

4.0mm x 18.0mm Open End Dome Blind Rivet
4.0mm x 18.0mm Open End Dome Blind Rivet
SKU:OPE-ada49b
High-quality 4.0mm x 18.0mm Dome Blind Rivet for reliable fastening, compliant with industry standards.
Regular price
$75.99
Regular price
Sale price
$75.99
Unit price
per
Initiate Order
4.0mm x 18.0mm Open End Dome Blind Rivet
$75.99
Quantity: 1
Claim Your Seller Account
4.0mm x 18.0mm Open End Dome Blind Rivet
$75.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 4.0mm Diameter and 18.0mm Body Length Open End Dome Blind Rivet by Ornit is a high-quality fastening solution ideal for various applications. Made from Aluminum Alloy to AA 5052 with a Zinc Plated Chromium VI Free mandrel, it offers exceptional strength and durability. With a Nominal Shear Force of 100kgf and Tensile Force of 160kgf, it ensures reliable performance in demanding conditions. This rivet complies with Federal/DoD procurement standards, FAR compliance factors, and industry-specific certifications.
Product Specifications
Nominal Dimensions Body Length
18.0 mm | 0.709 in
Nominal Dimensions Diameter
4.0 mm
Nominal Dimensions Drillhole Size
4.1 mm | 0.161 in
Nominal Dimensions Head Diameter
7.8 mm | 0.307 in
Nominal Dimensions Head Thickness
1.15 mm | 0.045 in
Nominal Dimensions Mandrel Diameter
2.31 mm | 0.091 in
Nominal Dimensions Maximum Grip Range
13.5 mm | 0.531 in
Nominal Dimensions Minimum Grip Range
11.5 mm | 0.453 in
Nominal Forces Nominal Shear Force
100 kgf | 220 lbf
Nominal Forces Nominal Tensile Force
160 kgf | 352 lbf
Technical Specs Body Finish
Natural
Technical Specs Body Material
Aluminum Alloy (2.5 mg) to AA 5052
Technical Specs Brands
Ornit
Technical Specs Carton Quantity
5000
Technical Specs Head Style
Dome
Technical Specs Mandrel Finish
Zinc Plated Chromium (Cr) VI Free
Technical Specs Mandrel Material
Low Carbon Steel SAE 1006-1022
