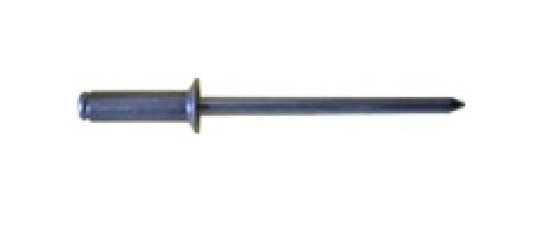

4.0mm x 8.0mm Open End Countersunk Blind Rivet
4.0mm x 8.0mm Open End Countersunk Blind Rivet
SKU:OPE-5b51f0
Premium 4.0mm x 8.0mm blind rivet for secure and durable fastening applications.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
4.0mm x 8.0mm Open End Countersunk Blind Rivet
$59.99
Quantity: 1
Claim Your Seller Account
4.0mm x 8.0mm Open End Countersunk Blind Rivet
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

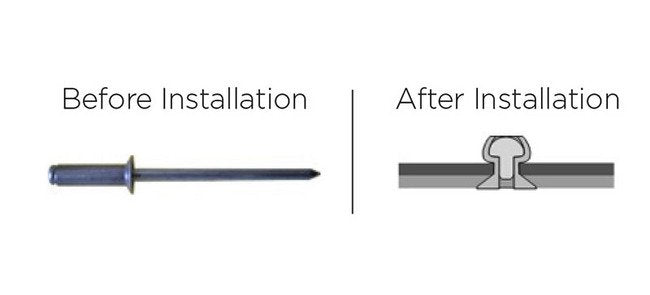

The 4.0mm diameter and 8.0mm body length open end countersunk blind rivet from Ornit is designed for secure fastening applications. Constructed with aluminum alloy to AA 5052 body material and a zinc-plated chromium VI free mandrel, it offers high shear and tensile forces. With a head style of countersunk and precise nominal dimensions, this rivet ensures reliable performance and durability. Ideal for a wide range of industries requiring strong and permanent fastenings.
Product Specifications
Nominal Dimensions Body Length
8.0 mm | 0.315 in
Nominal Dimensions Diameter
4.0 mm
Nominal Dimensions Drillhole Size
4.1 mm | 0.161 in
Nominal Dimensions Head Diameter
7.2 mm | 0.283 in
Nominal Dimensions Head Thickness
1.10 mm | 0.043 in
Nominal Dimensions Mandrel Diameter
2.31 mm | 0.091 in
Nominal Dimensions Maximum Grip Range
3.5 mm | 0.138 in
Nominal Dimensions Minimum Grip Range
1.5 mm | 0.059 in
Nominal Forces Nominal Shear Force
100 kgf | 220 lbf
Nominal Forces Nominal Tensile Force
160 kgf | 352 lbf
Technical Specs Body Finish
Natural
Technical Specs Body Material
Aluminum Alloy (2.5 mg) to AA 5052
Technical Specs Brands
Ornit
Technical Specs Carton Quantity
7000
Technical Specs Head Style
Countersunk
Technical Specs Mandrel Finish
Zinc Plated Chromium (Cr) VI Free
Technical Specs Mandrel Material
Low Carbon Steel SAE 1006-1022
