4.2V Ultra-Thin Flexible Heater

4.2V Ultra-Thin Flexible Heater

ULT-0a411e

Efficient 4.2V Ultra-Thin Flexible Heater with 2.65W power & 0.66 W/cm² density. CE, CRU®US, RoHS compliant.

$39.99
$39.99
Sale

Initiate Order

4.2V Ultra-Thin Flexible Heater

4.2V Ultra-Thin Flexible Heater

$39.99

Quantity: 1

Claim Your Seller Account

4.2V Ultra-Thin Flexible Heater

4.2V Ultra-Thin Flexible Heater

$39.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

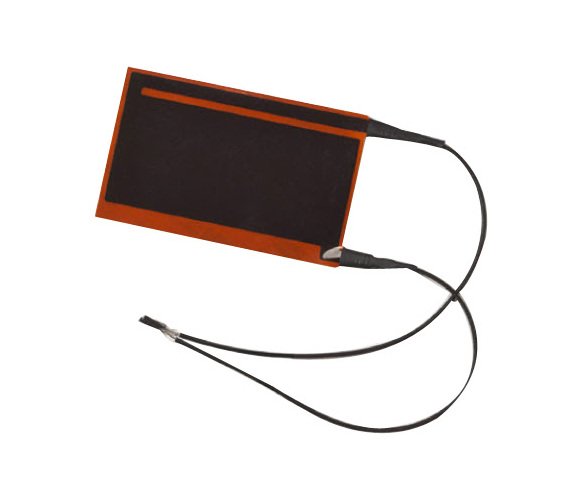

Experience efficient heat generation with the 4.2V Ultra-Thin Flexible Heater by Pelonis Technologies. This durable copper-nickel alloy heater boasts a power output of 2.65 Watts and a power density of 0.66 W/cm². With a current rating of 0.63A and CE, CRU®US, RoHS compliance, this rectangular heater ensures optimal performance while meeting industry standards.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Note Note
If the heater requires a higher heat-up rate or higher power density (>0.8W/cm2), make sure a temperature sensor or thermostat is installed to prevent overheating causing damage to products.Dimensions and specifications are subject to change without notice.
Specifications Current
0.63 A
Specifications Dc Voltage
4.2 V
Specifications Heater Material
Etched Foil
Specifications Industry Standardscertifications
CE Recognized | CRU®US Recognized | Reach Compliant | Restriction of Hazardous Substances (RoHS) Compliant
Specifications Lead Wire Length
210 mm
Specifications Length
25 mm
Specifications Note For Lead Wire Length
The length of the lead wires will be 210 mm unless otherwise specified.
Specifications Note For Reference Temperature Rise
Please note that the Temperature Rise value is for reference only. The actual temperature rise is dependent on the ambient environment and the application of the flexible heater.
Specifications Power
2.65 Watts
Specifications Power Density
0.66 W/cm²
Specifications Reference Temperature Rise
90 ºC
Specifications Resistance
6.66 Ohm
Specifications Shape
Rectangular
Specifications Type
Copper-Nickel (Cu-Ni) Alloy
Specifications Width
16 mm
