4.2V Ultra-Thin Flexible Heater | Standard Rectangular 0.13W/cm² Power Density

4.2V Ultra-Thin Flexible Heater | Standard Rectangular 0.13W/cm² Power Density

ULT-691016

Powerful 4.2V Ultra-Thin Flexible Heater with 0.13W/cm² power density. CE, CRU®US, Reach, RoHS Compliant.

$44.99
$44.99
Sale

Initiate Order

4.2V Ultra-Thin Flexible Heater | Standard Rectangular 0.13W/cm² Power Density

4.2V Ultra-Thin Flexible Heater | Standard Rectangular 0.13W/cm² Power Density

$44.99

Quantity: 1

Claim Your Seller Account

4.2V Ultra-Thin Flexible Heater | Standard Rectangular 0.13W/cm² Power Density

4.2V Ultra-Thin Flexible Heater | Standard Rectangular 0.13W/cm² Power Density

$44.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

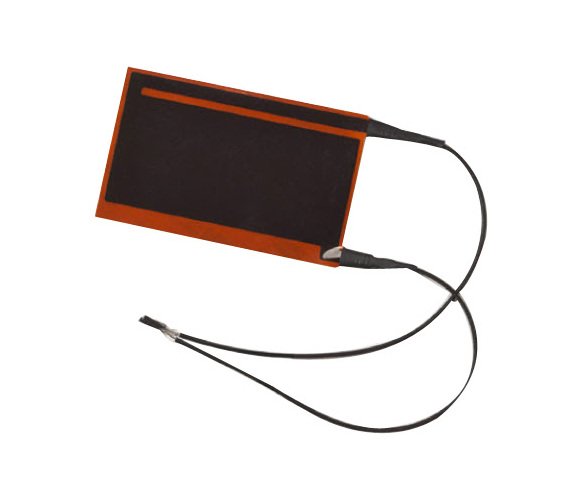

Experience efficient heating with the 4.2V Ultra-Thin Flexible Heater. With a power density of 0.13W/cm² and a current of 0.5A, this nano carbon heater, certified by CE Recognized, CRU®US Recognized, Reach Compliant, and RoHS Compliant, offers reliable performance. Its 40mm x 40mm dimensions, 8.38 Ohm resistance, and Silicon material ensure versatility and durability for various applications. Equipped with a 210mm lead wire, this heater delivers consistent heat while maintaining safety standards.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Note Note
If the heater requires a higher heat-up rate or higher power density (>0.8W/cm2), make sure a temperature sensor or thermostat is installed to prevent overheating causing damage to products.Dimensions and specifications are subject to change without notice.
Specifications Current
0.5 A
Specifications Dc Voltage
4.2 V
Specifications Heater Material
Nano Carbon | Silicon
Specifications Industry Standardscertifications
CE Recognized | CRU®US Recognized | Reach Compliant | Restriction of Hazardous Substances (RoHS) Compliant
Specifications Lead Wire Length
210 mm
Specifications Length
40 mm
Specifications Note For Lead Wire Length
The length of the lead wires will be 210 mm unless otherwise specified.
Specifications Note For Reference Temperature Rise
Please note that the Temperature Rise value is for reference only. The actual temperature rise is dependent on the ambient environment and the application of the flexible heater.
Specifications Power
2.11 Watts
Specifications Power Density
0.13 W/cm²
Specifications Reference Temperature Rise
30 ºC
Specifications Resistance
8.38 Ohm
Specifications Shape
Rectangular
Specifications Type
Nano Carbon (STANDARD)
Specifications Width
40 mm
