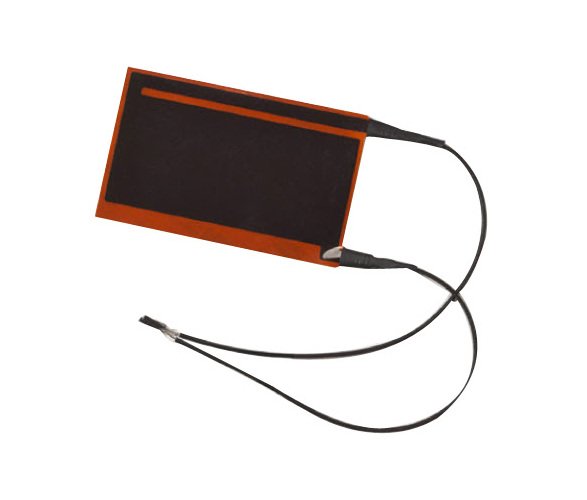

4.2V Ultra-Thin Rectangular Flexible Heater

4.2V Ultra-Thin Rectangular Flexible Heater

ULT-f9b0b2

Efficient 4.2V Ultra-Thin Flexible Heater with 2.14 W/cm² power density, ideal for various applications.

$45.99
$45.99
Sale

Initiate Order

4.2V Ultra-Thin Rectangular Flexible Heater

4.2V Ultra-Thin Rectangular Flexible Heater

$45.99

Quantity: 1

Claim Your Seller Account

4.2V Ultra-Thin Rectangular Flexible Heater

4.2V Ultra-Thin Rectangular Flexible Heater

$45.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
Experience efficient heating with the 4.2V Ultra-Thin Rectangular Flexible Heater by Pelonis Technologies. Featuring a Copper-Nickel Alloy construction, this heater offers a powerful 2.14 W/cm² power density and 2.12A current. With industry certifications like CE, CRUUS, RoHS compliance, and more, it ensures quality performance while maintaining safety standards. The etched foil material and 210mm lead wire length make it a reliable heating solution for a variety of applications.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Note Note
If the heater requires a higher heat-up rate or higher power density (>0.8W/cm2), make sure a temperature sensor or thermostat is installed to prevent overheating causing damage to products.Dimensions and specifications are subject to change without notice.
Specifications Current
2.12 A
Specifications Dc Voltage
4.2 V
Specifications Heater Material
Etched Foil
Specifications Industry Standardscertifications
CE Recognized | CRU®US Recognized | Reach Compliant | Restriction of Hazardous Substances (RoHS) Compliant
Specifications Lead Wire Length
210 mm
Specifications Length
32 mm
Specifications Note For Lead Wire Length
The length of the lead wires will be 210 mm unless otherwise specified.
Specifications Note For Reference Temperature Rise
Please note that the Temperature Rise value is for reference only. The actual temperature rise is dependent on the ambient environment and the application of the flexible heater.
Specifications Power
8.91 Watts
Specifications Power Density
2.14 W/cm²
Specifications Reference Temperature Rise
210 ºC
Specifications Resistance
1.98 Ohm
Specifications Shape
Rectangular
Specifications Type
Copper-Nickel (Cu-Ni) Alloy
Specifications Width
13 mm
