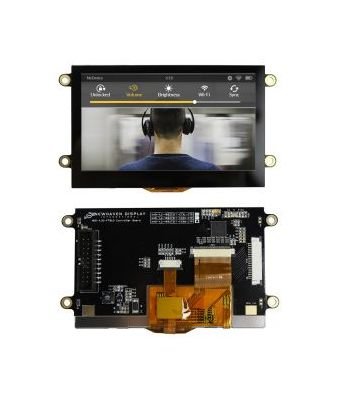

4.3 Inch Resistive TFT LCD Display Module
4.3 Inch Resistive TFT LCD Display Module
SKU:EVE-bddacc
Enhance visuals with our 4.3-inch resistive TFT LCD module, featuring vibrant RGB colors, 480 x 272 resolution, and touch panel support.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
4.3 Inch Resistive TFT LCD Display Module
$59.99
Quantity: 1
Claim Your Seller Account
4.3 Inch Resistive TFT LCD Display Module
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience superior visual performance with our 4.3-inch EVE2 Thin Film Transistor (TFT) Liquid Crystal Display (LCD) Module. This module features a high-resolution 480 x 272 pixel display in Wide Quarter Video Graphics Array (WQVGA) format. The TFT color display with Red, Green, Blue (RGB) graphics ensures vibrant and accurate color reproduction. With a resistive touch panel, white LED backlight, and SPI interface, this module offers seamless integration and user-friendly operation. Designed to meet stringent standards, including RoHS, REACH, and lead-free requirements, this display module is ideal for both consumer and institutional applications.
Product Specifications
Connection Details Cn1 Connector Type
Male Insulation Displacement Connector (IDC) Box Header
Connection Details Cn1 Pitch Size
2.54 mm
Connection Details Cn1 Size
2 x 10 in
Connection Details Cn2 Connector Type
Top-Contact Flat Flex Cable (FFC) Connector
Connection Details Cn2 Pitch Size
1.00 mm
Connection Details Number Of Cn1 Pins
20
Connection Details Number Of Cn2 Pins
20
Dimension Outline Height
67.2 mm
Dimension Outline Width
120.6 mm
Specifications Back Light Emitting Diode Led Color
White
Specifications Controller
FT812
Specifications Country Of Origin
China
Specifications Diagonal Size
4.3 in | 109.22 mm
Specifications Display Format
480 x 272 Pixels | Wide Quarter Video Graphics Array (WQVGA)
Specifications Display Mode
Transmissive
Specifications Display Type
Standard
Specifications Export Control Classification Number Eccn Number
EAR99
Specifications Graphics Color
Red, Green, Blue (RGB)
Specifications Interface
Service Provider Interface (SPI)
Specifications International Harmonize Code
8531.20.0020
Specifications Is Dry Pack Required
No
Specifications Is Part Lead Pb Free
Yes
Specifications Is Part Restriction Of Hazardous Substances Rohs
Yes
Specifications Is Part Static Sensitive
Yes
Specifications Lead Time
16 w
Specifications Minimum Order Quantity Moq
100
Specifications Moisture Sensitivity Level Msl
Maintain in Room Temperature
Specifications Multiple Order
Varies Upon Purchase
Specifications North American Free Trade Agreement Nafta Complia
No
Specifications Operating Temperature Range
-20 to +70 ºC
Specifications Packaging Type
Box | Bulk | Tray
Specifications Part Status
Stocked
Specifications Registerable
Yes
Specifications Registration Evaluation Authorization And Restric
Yes
Specifications Touch Panel
Resistive
Specifications View
6:00
Specifications Voltage Supply
3.3 V
