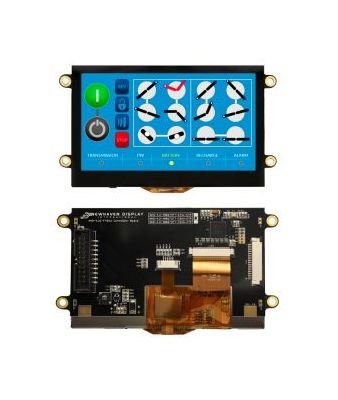

4.3 Inch Sunlight Readable Resistive TFT LCD Module
4.3 Inch Sunlight Readable Resistive TFT LCD Module
SKU:EVE-d986a0
Experience vibrant visuals with our 4.3-inch TFT LCD module. Sunlight-readable, RGB color display with a resistive touch panel.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
4.3 Inch Sunlight Readable Resistive TFT LCD Module
$59.99
Quantity: 1
Claim Your Seller Account
4.3 Inch Sunlight Readable Resistive TFT LCD Module
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your visual experience with our 4.3-inch sunlight-readable TFT LCD display module. With a resolution of 480 x 272 pixels, this module boasts vibrant RGB colors and a resistive touch panel for seamless interaction. It meets international standards like RoHS, REACH, and is lead-free, making it ideal for institutional procurement needs.
Product Specifications
Connection Details Cn1 Connector Type
Male Insulation Displacement Connector (IDC) Box Header
Connection Details Cn1 Pitch Size
2.54 mm
Connection Details Cn1 Size
2 x 10 in
Connection Details Cn2 Connector Type
Top-Contact Flat Flex Cable (FFC) Connector
Connection Details Cn2 Pitch Size
1.00 mm
Connection Details Number Of Cn1 Pins
20
Connection Details Number Of Cn2 Pins
20
Dimension Outline Height
67.2 mm
Dimension Outline Width
120.6 mm
Specifications Back Light Emitting Diode Led Color
White
Specifications Controller
FT812
Specifications Country Of Origin
China
Specifications Diagonal Size
4.3 in | 109.22 mm
Specifications Display Format
480 x 272 Pixels | Wide Quarter Video Graphics Array (WQVGA)
Specifications Display Mode
Transmissive
Specifications Display Type
Sunlight Readable
Specifications Export Control Classification Number Eccn Number
EAR99
Specifications Graphics Color
Red, Green, Blue (RGB)
Specifications Interface
Service Provider Interface (SPI)
Specifications International Harmonize Code
8531.20.0020
Specifications Is Dry Pack Required
No
Specifications Is Part Lead Pb Free
Yes
Specifications Is Part Restriction Of Hazardous Substances Rohs
Yes
Specifications Is Part Static Sensitive
Yes
Specifications Lead Time
16 w
Specifications Minimum Order Quantity Moq
100
Specifications Moisture Sensitivity Level Msl
Maintain in Room Temperature
Specifications Multiple Order
Varies Upon Purchase
Specifications North American Free Trade Agreement Nafta Complia
No
Specifications Operating Temperature Range
-20 to +70 ºC
Specifications Packaging Type
Box | Bulk | Tray
Specifications Part Status
Stocked
Specifications Registerable
Yes
Specifications Registration Evaluation Authorization And Restric
Yes
Specifications Touch Panel
Resistive
Specifications View
6:00
Specifications Voltage Supply
3.3 V
