4.375 in x 1.875 in Standard Chip Deflector - Cold Rolled Steel (16 GA CRS)

Name: 4.375 in x 1.875 in Standard Chip Deflector - Cold Rolled Steel (16 GA CRS)
Brand: Bermar Associates, Inc.
SKU: STA-ea434b
Price: 29.99 USD
Availability: OutOfStock

SKU:STA-ea434b

Enhance machine longevity with our sturdy 4.375x1.875 in Standard Chip Deflector made of 16 GA CRS for reliable chip protection.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

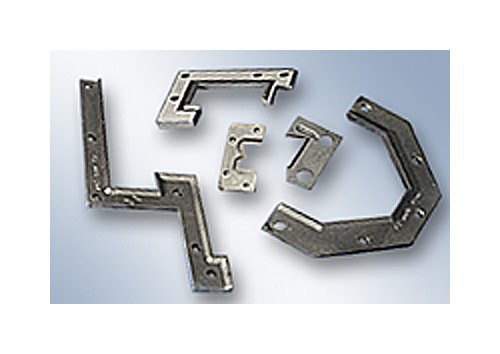

The 4.375 Inch Dimension A and 1.875 Inch Dimension B Standard Chip Deflector is expertly crafted from 16 gauge cold-rolled steel to ensure durability and reliability. Designed to protect machine ways and way wipers from metal chips in hot chip applications, this deflector also serves as a stiffener for enhanced strength. Customizable to specific size requirements, with or without hole patterns, it can be seamlessly integrated using the provided mounting instructions. Ideal for both consumer and institutional buyers seeking quality chip deflectors that meet industry standards.

Product Specifications

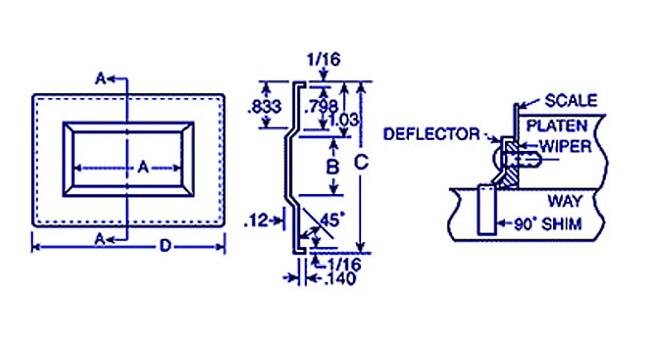

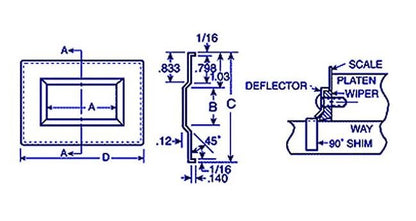

Mounting Instructions Mounting Instructions

Slide wiper into position.Place deflector over wiper.Insert all screws. Leave loose.Use 1/16 x 90Âº shim under lip of deflector.Use 6" scale. Apply pressure 90Âº leg of wiper. Hold deflector against 1/16 shim.Same procedure across top of wiper. Then around remaining sides. Remove shim.

Specifications Dimension A

4.375 in

Specifications Dimension B

1.875 in

Specifications Materials

Cold Rolled Steel (CRS)

Specifications Material Thickness

16 gauge
