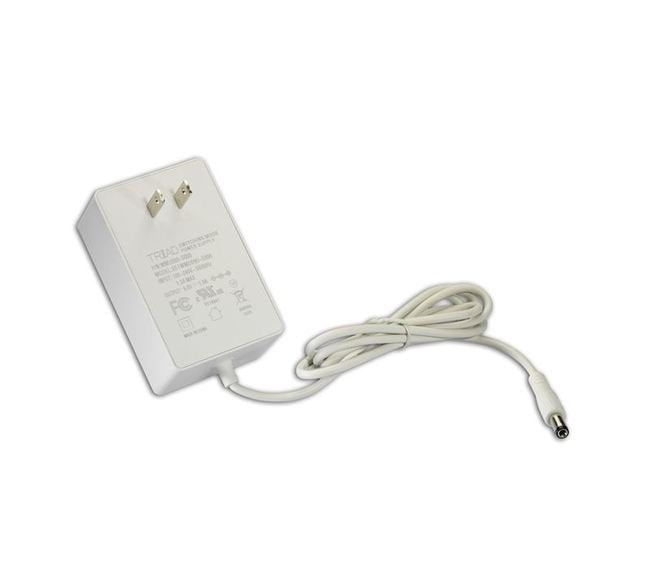

4.5V DC Negative Polarity Medical Wall Plug-In Power Transformer
4.5V DC Negative Polarity Medical Wall Plug-In Power Transformer
SKU:WAL-2fc44b
Streamline product design with the 4.5V DC Negative Polarity Medical Wall Plug-In Power Transformer for efficient, quiet, and safe power supply.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
4.5V DC Negative Polarity Medical Wall Plug-In Power Transformer
$39.99
Quantity: 1
Claim Your Seller Account
4.5V DC Negative Polarity Medical Wall Plug-In Power Transformer
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 4.5V DC Negative Polarity Medical Wall Plug-In Power Transformer from WMU is designed to streamline product design by eliminating the need for internal cooling devices, resulting in reduced noise, size, and weight. This compact power source ensures heat is kept away from sensitive circuits, offering a safer lower output. Enclosed to prevent tampering, it features a regulated output voltage, generous cord length, and meets Level IV and V efficiency standards. With 2007 EISA compliance, this power transformer is ideal for medical applications.
Product Specifications
Case Dimensions Depth D
1.22 in | 31.00 mm
Case Dimensions Height H
2.97 in | 75.5 mm
Case Dimensions Width W
1.89 in | 48 mm
Output Plug Dimensions Inside Diameter Id
0.098±0.004 in | 2.5 mm
Output Plug Dimensions Length L
0.433±0.020 in | 11 mm
Output Plug Dimensions Outside Diameter Od
0.217±0.004 in | 5.5 mm
Specifications 2007 Eisa Efficiency
VI
Specifications Input Operating Frequency
50 Hz | 60 Hz
Specifications Input Voltage Ac
100 to 240 V
Specifications Maximum Power
18.00 W
Specifications Output Current Dc
4.0 A
Specifications Output Voltage Dc
4.5 V
Specifications Polarity Center
Negative
Specifications Type
Switchmode
