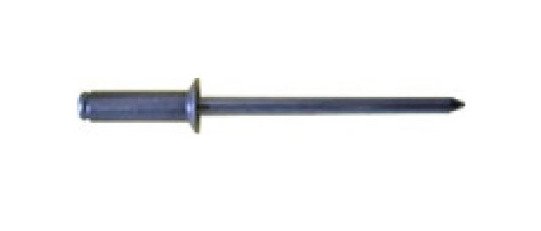

4.8mm Open End Countersunk Blind Rivet
4.8mm Open End Countersunk Blind Rivet
SKU:OPE-5e40b2
High-strength 4.8mm Open End Rivet, perfect for secure and durable fastening. Meets stringent standards for reliability.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
4.8mm Open End Countersunk Blind Rivet
$49.99
Quantity: 1
Claim Your Seller Account
4.8mm Open End Countersunk Blind Rivet
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 4.8mm Open End Countersunk Blind Rivet is a reliable fastening solution suitable for various applications. Manufactured with Aluminum Alloy body and Low Carbon Steel mandrel, it offers exceptional strength and corrosion resistance. This rivet, meeting stringent standards, ensures secure joints and withstands nominal shear forces up to 150 kgf and tensile forces up to 220 kgf, making it ideal for both consumer and institutional use.
Product Specifications
Nominal Dimensions Body Length
30.0 mm | 1.181 in
Nominal Dimensions Diameter
4.8 mm
Nominal Dimensions Drillhole Size
4.9 mm | 0.193 in
Nominal Dimensions Head Diameter
8.7 mm | 0.343 in
Nominal Dimensions Head Thickness
1.30 mm | 0.051 in
Nominal Dimensions Mandrel Diameter
2.61 mm | 0.103 in
Nominal Dimensions Maximum Grip Range
25.0 mm | 0.984 in
Nominal Dimensions Minimum Grip Range
20.0 mm | 0.787 in
Nominal Forces Nominal Shear Force
150 kgf | 330 lbf
Nominal Forces Nominal Tensile Force
220 kgf | 484 lbf
Technical Specs Body Finish
Natural
Technical Specs Body Material
Aluminum Alloy (2.5 mg) to AA 5052
Technical Specs Brands
Ornit
Technical Specs Carton Quantity
2500
Technical Specs Head Style
Countersunk
Technical Specs Mandrel Finish
Zinc Plated Chromium (Cr) VI Free
Technical Specs Mandrel Material
Low Carbon Steel SAE 1006-1022
