4.8mm Open End Countersunk Blind Rivet (4000-Pack)
4.8mm Open End Countersunk Blind Rivet (4000-Pack)
SKU:OPE-d6d249

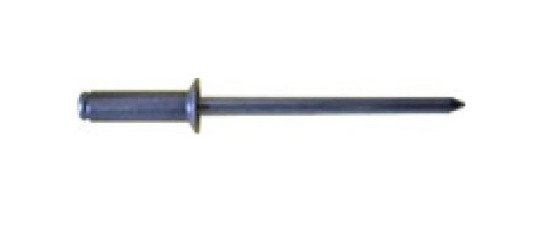

Ornit 4.8mm Open End Countersunk Blind Rivet for secure, durable fastening. Shear force of 150 kgf. Aluminum alloy body with zinc-plated chromium mandrel.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
4.8mm Open End Countersunk Blind Rivet (4000-Pack)
$299.99
Quantity: 1
Claim Your Seller Account
4.8mm Open End Countersunk Blind Rivet (4000-Pack)
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your fastening solutions with the Ornit 4.8mm Open End Countersunk Blind Rivets. Made from aluminum alloy to AA 5052 standards with a zinc-plated chromium mandrel, these rivets ensure durability and corrosion resistance. With a grip range of 11.0mm to 13.0mm, they offer secure fastening and can withstand shear forces of up to 150 kgf. Ideal for various applications requiring high tensile strength and precision engineering.
Product Specifications
Nominal Dimensions Body Length
18.0 mm | 0.709 in
Nominal Dimensions Diameter
4.8 mm
Nominal Dimensions Drillhole Size
4.9 mm | 0.193 in
Nominal Dimensions Head Diameter
8.7 mm | 0.343 in
Nominal Dimensions Head Thickness
1.30 mm | 0.051 in
Nominal Dimensions Mandrel Diameter
2.61 mm | 0.103 in
Nominal Dimensions Maximum Grip Range
13.0 mm | 0.512 in
Nominal Dimensions Minimum Grip Range
11.0 mm | 0.433 in
Nominal Forces Nominal Shear Force
150 kgf | 330 lbf
Nominal Forces Nominal Tensile Force
220 kgf | 484 lbf
Technical Specs Body Finish
Natural
Technical Specs Body Material
Aluminum Alloy (2.5 mg) to AA 5052
Technical Specs Brands
Ornit
Technical Specs Carton Quantity
4000
Technical Specs Head Style
Countersunk
Technical Specs Mandrel Finish
Zinc Plated Chromium (Cr) VI Free
Technical Specs Mandrel Material
Low Carbon Steel SAE 1006-1022
