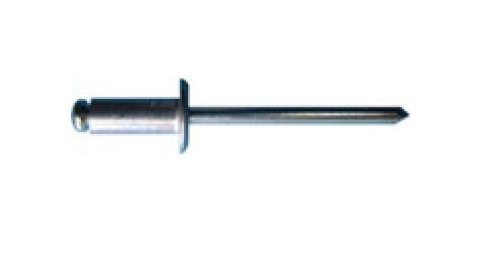

4.8mm Open End Dome Blind Rivet
4.8mm Open End Dome Blind Rivet
SKU:OPE-b46e4e
High-quality 4.8mm Dome Rivet for secure and reliable fastening in various applications.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
4.8mm Open End Dome Blind Rivet
$49.99
Quantity: 1
Claim Your Seller Account
4.8mm Open End Dome Blind Rivet
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 4.8mm Open End Dome Blind Rivet is a high-quality fastening solution designed for a wide range of applications. Manufactured with precision, it features a 4.8mm diameter and a 33.0mm body length, ensuring reliable and secure connections. With a dome head style and a body made of Aluminum Alloy, this rivet offers excellent strength and corrosion resistance. The mandrel, constructed from Low Carbon Steel, provides durability, while the zinc-plated chromium finish enhances longevity. Meeting stringent industry standards, this rivet guarantees optimal performance and compliance.
Product Specifications
Nominal Dimensions Body Length
33.0 mm | 1.299 in
Nominal Dimensions Diameter
4.8 mm
Nominal Dimensions Drillhole Size
4.9 mm | 0.193 in
Nominal Dimensions Head Diameter
9.3 mm | 0.366 in
Nominal Dimensions Head Thickness
1.30 mm | 0.051 in
Nominal Dimensions Mandrel Diameter
2.61 mm | 0.103 in
Nominal Dimensions Maximum Grip Range
28.0 mm | 1.102 in
Nominal Dimensions Minimum Grip Range
22.0 mm | 0.866 in
Nominal Forces Nominal Shear Force
150 kgf | 330 lbf
Nominal Forces Nominal Tensile Force
220 kgf | 484 lbf
Technical Specs Body Finish
Natural
Technical Specs Body Material
Aluminum Alloy (2.5 mg) to AA 5052
Technical Specs Brands
Ornit
Technical Specs Carton Quantity
2000
Technical Specs Head Style
Dome
Technical Specs Mandrel Finish
Zinc Plated Chromium (Cr) VI Free
Technical Specs Mandrel Material
Low Carbon Steel SAE 1006-1022
