4.8mm Open End Dome Blind Rivet (Pack of 2500)
4.8mm Open End Dome Blind Rivet (Pack of 2500)
SKU:OPE-1f81b1
Premium quality 4.8mm Dome Blind Rivet for secure fastening and lasting durability. Pack of 2500.
Regular price
$149.99
Regular price
Sale price
$149.99
Unit price
per
Initiate Order
4.8mm Open End Dome Blind Rivet (Pack of 2500)
$149.99
Quantity: 1
Claim Your Seller Account
4.8mm Open End Dome Blind Rivet (Pack of 2500)
$149.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

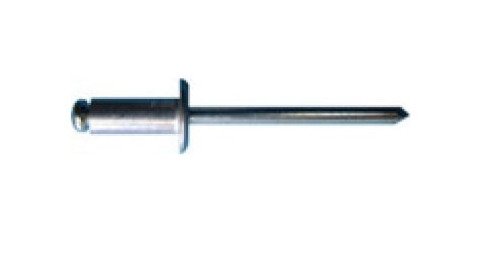

The 4.8mm Diameter and 30.0mm Body Length Open End Dome Blind Rivet, branded by Ornit, is crafted from Aluminum Alloy to AA 5052 standards. With a Dome Head Style and Zinc Plated Chromium Mandrel, this rivet offers industry-leading specifications. Ideal for applications requiring a grip range of 20.0mm to 25.0mm, it withstands shear forces up to 150 kgf and tensile forces up to 220 kgf. Trust in the quality and reliability of this rivet for your projects.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Nominal Dimensions Body Length
30.0 mm | 1.181 in
Nominal Dimensions Diameter
4.8 mm
Nominal Dimensions Drillhole Size
4.9 mm | 0.193 in
Nominal Dimensions Head Diameter
9.3 mm | 0.366 in
Nominal Dimensions Head Thickness
1.30 mm | 0.051 in
Nominal Dimensions Mandrel Diameter
2.61 mm | 0.103 in
Nominal Dimensions Maximum Grip Range
25.0 mm | 0.984 in
Nominal Dimensions Minimum Grip Range
20.0 mm | 0.787 in
Nominal Forces Nominal Shear Force
150 kgf | 330 lbf
Nominal Forces Nominal Tensile Force
220 kgf | 484 lbf
Technical Specs Body Finish
Natural
Technical Specs Body Material
Aluminum Alloy (2.5 mg) to AA 5052
Technical Specs Brands
Ornit
Technical Specs Carton Quantity
2500
Technical Specs Head Style
Dome
Technical Specs Mandrel Finish
Zinc Plated Chromium (Cr) VI Free
Technical Specs Mandrel Material
Low Carbon Steel SAE 1006-1022
