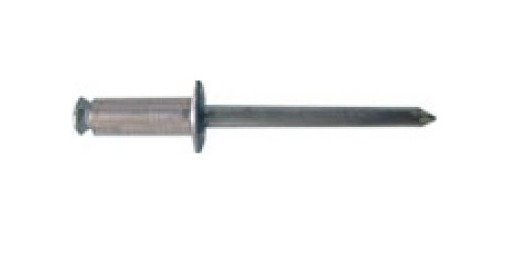

4.8mm Open End Peel Blind Rivet - Aluminum Alloy Body, Zinc Plated Mandrel, Pack of 4000
4.8mm Open End Peel Blind Rivet - Aluminum Alloy Body, Zinc Plated Mandrel, Pack of 4000
SKU:OPE-304d83
High-strength 4.8mm Peel Blind Rivet for industrial use. Aluminum Alloy body, Zinc Plated Chromium (Cr) VI Free mandrel. Pack of 4000.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
4.8mm Open End Peel Blind Rivet - Aluminum Alloy Body, Zinc Plated Mandrel, Pack of 4000
$129.99
Quantity: 1
Claim Your Seller Account
4.8mm Open End Peel Blind Rivet - Aluminum Alloy Body, Zinc Plated Mandrel, Pack of 4000
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

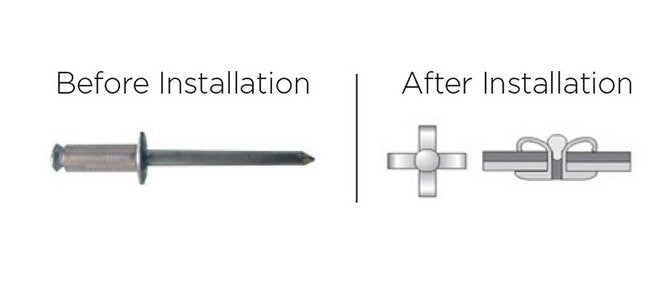

The 4.8mm Diameter, 14.0mm Body Length Open End Peel Blind Rivet by Ornit is engineered for superior fastening performance. Constructed with Aluminum Alloy body and Zinc Plated Chromium (Cr) VI Free mandrel, it offers exceptional shear and tensile forces of 200 kgf | 440 lbf each. With a Peel head style, this rivet ensures secure and lasting connections in industrial applications. Designed to meet stringent standards, this pack of 4000 rivets is ideal for projects requiring precision and reliability.
Product Specifications
Nominal Dimensions Body Length
14.0 mm | 0.551 in
Nominal Dimensions Diameter
4.8 mm
Nominal Dimensions Drillhole Size
5.2 mm | 0.205 in
Nominal Dimensions Head Diameter
9.3 mm | 0.366 in
Nominal Dimensions Head Thickness
1.30 mm | 0.051 in
Nominal Dimensions Mandrel Diameter
2.61 mm | 0.103 in
Nominal Dimensions Maximum Grip Range
7.0 mm | 0.276 in
Nominal Dimensions Minimum Grip Range
3.0 mm | 0.118 in
Nominal Forces Nominal Shear Force
200 kgf | 440 lbf
Nominal Forces Nominal Tensile Force
200 kgf | 440 lbf
Technical Specs Body Finish
Natural
Technical Specs Body Material
Aluminum Alloy (3.5-5.0 mg) to AA 5056 /5154
Technical Specs Brands
Ornit
Technical Specs Carton Quantity
4000
Technical Specs Head Style
Peel
Technical Specs Mandrel Finish
Zinc Plated Chromium (Cr) VI Free
Technical Specs Mandrel Material
Low Carbon Steel SAE 1006-1022
