4.8mm U-Fix Aluminum Dome Head Rivet
4.8mm U-Fix Aluminum Dome Head Rivet
SKU:UFI-b02d95
Highly versatile 4.8mm Aluminum Dome Head Rivet with exceptional grip range, ideal for automotive applications.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

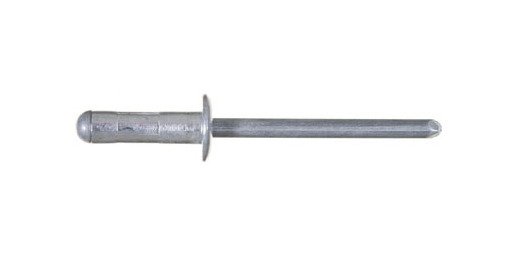

The 4.8mm U-Fix Aluminum Dome Head Rivet is a top-quality fastener designed for versatility and durability. Constructed with Aluminum Alloy ALmg 1.0 body material and Aluminum Alloy ALmg 5.0 mandrel material, it offers exceptional strength and reliability. With a head diameter of 9.8mm and a body length of 24.8mm, this rivet provides a secure grip range of 12.7mm to 19.8mm, suitable for various applications including automotive interiors. Meeting high standards of shear force (100 kgf) and tensile force (150 kgf), this rivet is a go-to choice for professionals seeking quality and performance.
Product Specifications
Applications Automotive Application
InteriorThe U-Fix is a highly versatile purpose-built fastener, featuring an excellent multi-grip function ideal for a variety of purposes. Commonly used to secure components within the vehicle.
Nominal Dimensions Body Length
24.8 mm | 0.976 in
Nominal Dimensions Diameter
4.8 mm | 3/16 in
Nominal Dimensions Drillhole Size
4.9 mm | 0.193 in
Nominal Dimensions Head Diameter
9.8 mm | 0.386 in
Nominal Dimensions Head Thickness
1.45 mm | 0.057 in
Nominal Dimensions Mandrel Diameter
2.91 mm | 0.115 in
Nominal Dimensions Maximum Grip Range
19.8 mm | 0.780 in
Nominal Dimensions Minimum Grip Range
12.7 mm | 0.500 in
Nominal Forces Nominal Shear Force
100 kgf | 220 lbf
Nominal Forces Nominal Tensile Force
150 kgf | 330 lbf
Technical Specs Body Finish
Natural
Technical Specs Body Material
Aluminum Alloy ALmg 1.0
Technical Specs Brands
Ornit
Technical Specs Carton Quantity
4000
Technical Specs Head Style
Dome
Technical Specs Mandrel Finish
Natural
Technical Specs Mandrel Material
Aluminum Alloy ALmg 5.0
