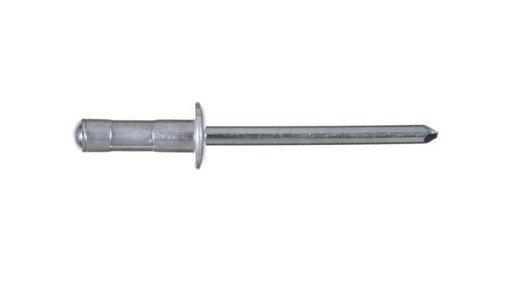

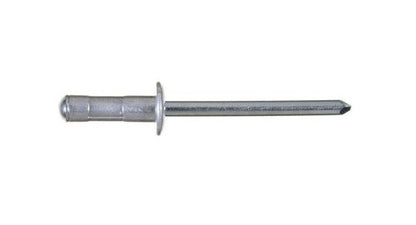

4.8mm U-Fix Aluminum/Stainless Steel Dome Head Rivet
4.8mm U-Fix Aluminum/Stainless Steel Dome Head Rivet
SKU:UFI-6b4260
Versatile 4.8mm Dome Head Rivet for secure and multipurpose fastening in automotive and trailer applications
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
4.8mm U-Fix Aluminum/Stainless Steel Dome Head Rivet
$29.99
Quantity: 1
Claim Your Seller Account
4.8mm U-Fix Aluminum/Stainless Steel Dome Head Rivet
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 4.8mm U-Fix Aluminum/Stainless Steel Dome Head Rivet is a versatile and durable fastener designed for various applications in automotive and trailer settings. Constructed with premium Aluminum Alloy ALmg 2.5 body and Stainless Steel AISI 430/434 mandrel, it offers reliable performance. With a 15.1mm body length and a multi-grip function, it ensures secure component attachment. Meeting high standards for shear and tensile forces, this rivet is ideal for securing rails, frames, and cabin installations.
Product Specifications
Applications Automotive Application
InteriorThe U-Fix is a highly versatile purpose-built fastener, featuring an excellent multi-grip function ideal for a variety of purposes. Commonly used to secure components within the vehicle.
Nominal Dimensions Body Length
15.1 mm | 0.594 in
Nominal Dimensions Diameter
4.8 mm | 3/16 in
Nominal Dimensions Drillhole Size
5.0 mm | 0.197 in
Nominal Dimensions Head Diameter
9.8 mm | 0.386 in
Nominal Dimensions Head Thickness
1.45 mm | 0.057 in
Nominal Dimensions Mandrel Diameter
2.8 mm | 0.110 in
Nominal Dimensions Maximum Grip Range
11.1 mm | 0.437 in
Nominal Dimensions Minimum Grip Range
4.8 mm | 0.189 in
Nominal Forces Nominal Shear Force
159 kgf | 350 lbf
Nominal Forces Nominal Tensile Force
240 kgf | 528 lbf
Technical Specs Body Finish
Natural
Technical Specs Body Material
Aluminum Alloy ALmg 2.5
Technical Specs Brands
Ornit
Technical Specs Carton Quantity
4000
Technical Specs Head Style
Dome
Technical Specs Mandrel Finish
Natural
Technical Specs Mandrel Material
Stainless Steel AISI 430/434 or Equivalent
