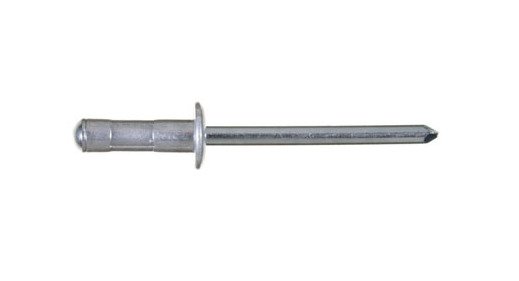

4.8mm U-Fix Aluminum/Stainless Steel Dome Head Rivet
4.8mm U-Fix Aluminum/Stainless Steel Dome Head Rivet
SKU:UFI-c3883e
Versatile 4.8mm U-Fix Rivet for automotive and trailer applications, offering reliable strength and secure fastening.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
4.8mm U-Fix Aluminum/Stainless Steel Dome Head Rivet
$49.99
Quantity: 1
Claim Your Seller Account
4.8mm U-Fix Aluminum/Stainless Steel Dome Head Rivet
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 4.8mm U-Fix Aluminum/Stainless Steel Dome Head Rivet is a versatile and durable fastener designed for various applications in automotive and trailer settings. With a sturdy aluminum alloy body and stainless steel mandrel, it offers a secure grip range from 1.6mm to 6.4mm. This rivet provides a nominal shear force of 159 kgf and a nominal tensile force of 240 kgf, ensuring reliable performance. Ideal for securing rails, components, and accessories, it meets stringent industry standards for quality and durability.
Product Specifications
Applications Automotive Application
InteriorThe U-Fix is a highly versatile purpose-built fastener, featuring an excellent multi-grip function ideal for a variety of purposes. Commonly used to secure components within the vehicle.
Nominal Dimensions Body Length
10.3 mm | 0.406 in
Nominal Dimensions Diameter
4.8 mm | 3/16 in
Nominal Dimensions Drillhole Size
5.0 mm | 0.197 in
Nominal Dimensions Head Diameter
9.8 mm | 0.386 in
Nominal Dimensions Head Thickness
1.45 mm | 0.057 in
Nominal Dimensions Mandrel Diameter
2.8 mm | 0.110 in
Nominal Dimensions Maximum Grip Range
6.4 mm | 0.252 in
Nominal Dimensions Minimum Grip Range
1.6 mm | 0.063 in
Nominal Forces Nominal Shear Force
159 kgf | 350 lbf
Nominal Forces Nominal Tensile Force
240 kgf | 528 lbf
Technical Specs Body Finish
Natural
Technical Specs Body Material
Aluminum Alloy ALmg 2.5
Technical Specs Brands
Ornit
Technical Specs Carton Quantity
5000
Technical Specs Head Style
Dome
Technical Specs Mandrel Finish
Natural
Technical Specs Mandrel Material
Stainless Steel AISI 430/434 or Equivalent
