4.8mm U-Fix Aluminum/Stainless Steel Rivet
4.8mm U-Fix Aluminum/Stainless Steel Rivet
SKU:UFI-573fdc
High-strength 4.8mm U-Fix Rivet for secure and versatile fastening in automotive applications.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
4.8mm U-Fix Aluminum/Stainless Steel Rivet
$29.99
Quantity: 1
Claim Your Seller Account
4.8mm U-Fix Aluminum/Stainless Steel Rivet
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

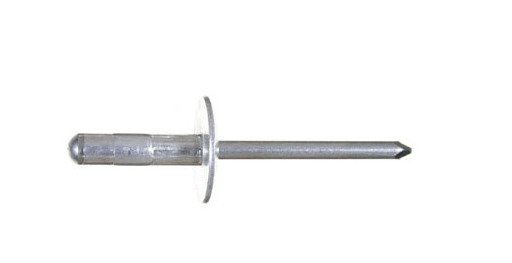

The 4.8mm U-Fix Aluminum/Stainless Steel Rivet is a premium fastening solution crafted from Aluminum Alloy ALmg 2.5 body with a Stainless Steel AISI 430/434 mandrel. With a 24.8mm body length, this rivet offers a secure grip range of 12.7mm to 19.8mm, ensuring optimal fastening strength. Able to withstand a nominal shear force of 159 kgf and a tensile force of 240 kgf, this rivet is perfect for various automotive interior applications. Its extra large head style provides ease of use and enhanced aesthetics, making it a top choice for professionals.
Product Specifications
Applications Automotive Application
InteriorThe U-Fix is a highly versatile purpose-built fastener, featuring an excellent multi-grip function ideal for a variety of purposes. Commonly used to secure components within the vehicle.
Nominal Dimensions Body Length
24.8 mm | 0.976 in
Nominal Dimensions Diameter
4.8 mm | 3/16 in
Nominal Dimensions Drillhole Size
4.9 mm | 0.193 in
Nominal Dimensions Head Diameter
15.85 mm | 0.624 in
Nominal Dimensions Head Thickness
1.75 mm | 0.069 in
Nominal Dimensions Mandrel Diameter
2.8 mm | 0.110 in
Nominal Dimensions Maximum Grip Range
19.8 mm | 0.780 in
Nominal Dimensions Minimum Grip Range
12.7 mm | 0.500 in
Nominal Forces Nominal Shear Force
159 kgf | 350 lbf
Nominal Forces Nominal Tensile Force
240 kgf | 528 lbf
Technical Specs Body Finish
Natural
Technical Specs Body Material
Aluminum Alloy ALmg 2.5
Technical Specs Brands
Ornit
Technical Specs Carton Quantity
2000
Technical Specs Head Style
Extra Large
Technical Specs Mandrel Finish
Natural
Technical Specs Mandrel Material
Stainless Steel AISI 430/434 or Equivalent
