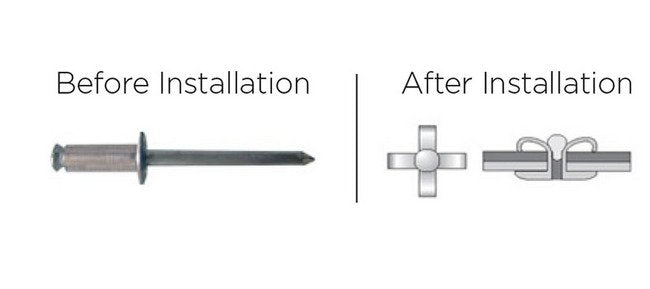

4.8mm x 12.0mm Open End Peel Blind Rivet
4.8mm x 12.0mm Open End Peel Blind Rivet
SKU:OPE-6cd2a5
High-quality 4.8mm x 12.0mm rivet with exceptional strength, corrosion resistance, and precise dimensions.
Regular price
$45.99
Regular price
Sale price
$45.99
Unit price
per
Initiate Order
4.8mm x 12.0mm Open End Peel Blind Rivet
$45.99
Quantity: 1
Claim Your Seller Account
4.8mm x 12.0mm Open End Peel Blind Rivet
$45.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 4.8mm x 12.0mm Open End Peel Blind Rivet by Ornit is a high-quality fastening solution ideal for a wide range of applications. Constructed with Aluminum Alloy and Low Carbon Steel mandrel, this rivet offers exceptional strength with a shear force of 200 kgf. Its zinc plated chromium finish ensures corrosion resistance, making it durable even in harsh environments. With a precise diameter and grip range, this rivet guarantees secure and reliable fastening.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Nominal Dimensions Body Length
12.0 mm | 0.472 in
Nominal Dimensions Diameter
4.8 mm
Nominal Dimensions Drillhole Size
5.2 mm | 0.205 in
Nominal Dimensions Head Diameter
9.3 mm | 0.366 in
Nominal Dimensions Head Thickness
1.30 mm | 0.051 in
Nominal Dimensions Mandrel Diameter
2.61 mm | 0.103 in
Nominal Dimensions Maximum Grip Range
5.0 mm | 0.197 in
Nominal Dimensions Minimum Grip Range
2.0 mm | 0.079 in
Nominal Forces Nominal Shear Force
200 kgf | 440 lbf
Nominal Forces Nominal Tensile Force
200 kgf | 440 lbf
Technical Specs Body Finish
Natural
Technical Specs Body Material
Aluminum Alloy (3.5-5.0 mg) to AA 5056 /5154
Technical Specs Brands
Ornit
Technical Specs Carton Quantity
4000
Technical Specs Head Style
Peel
Technical Specs Mandrel Finish
Zinc Plated Chromium (Cr) VI Free
Technical Specs Mandrel Material
Low Carbon Steel SAE 1006-1022
