4.8mm x 12mm Dome Open End Blind Rivet
4.8mm x 12mm Dome Open End Blind Rivet
SKU:OPE-eabcca

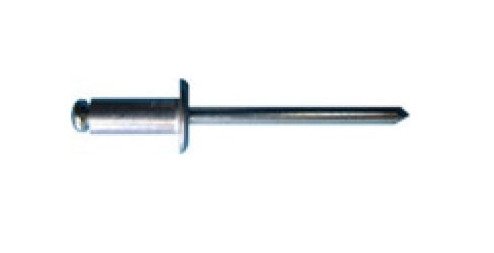

Ornit's 4.8mm x 12mm Dome Blind Rivet - Strong, reliable aluminum alloy rivet with low carbon steel mandrel for secure fastening.
Regular price
$35.99
Regular price
Sale price
$35.99
Unit price
per
Initiate Order
4.8mm x 12mm Dome Open End Blind Rivet
$35.99
Quantity: 1
Claim Your Seller Account
4.8mm x 12mm Dome Open End Blind Rivet
$35.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience exceptional fastening with the 4.8mm x 12mm Dome Open End Blind Rivet by Ornit. This aluminum alloy rivet, designed with a low carbon steel mandrel, offers reliable and durable performance. With a nominal shear force of 150 kgf and a tensile force of 220 kgf, this rivet ensures secure connections. Compliant with aerospace industry standards, it meets strict quality and safety requirements.
Product Specifications
Nominal Dimensions Body Length
12.0 mm | 0.472 in
Nominal Dimensions Diameter
4.8 mm
Nominal Dimensions Drillhole Size
4.9 mm | 0.193 in
Nominal Dimensions Head Diameter
9.3 mm | 0.366 in
Nominal Dimensions Head Thickness
1.30 mm | 0.051 in
Nominal Dimensions Mandrel Diameter
2.61 mm | 0.103 in
Nominal Dimensions Maximum Grip Range
7.0 mm | 0.276 in
Nominal Dimensions Minimum Grip Range
5.0 mm | 0.197 in
Nominal Forces Nominal Shear Force
150 kgf | 330 lbf
Nominal Forces Nominal Tensile Force
220 kgf | 484 lbf
Technical Specs Body Finish
Natural
Technical Specs Body Material
Aluminum Alloy (2.5 mg) to AA 5052
Technical Specs Brands
Ornit
Technical Specs Carton Quantity
5000
Technical Specs Head Style
Dome
Technical Specs Mandrel Finish
Zinc Plated Chromium (Cr) VI Free
Technical Specs Mandrel Material
Low Carbon Steel SAE 1006-1022
