4-Channel 32-Bit Frequency/Period/Counter Module
4-Channel 32-Bit Frequency/Period/Counter Module
SKU:INT-6646b0
Accurate 32-bit module for measuring frequencies, periods, and counts with unmatched precision and reliability.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
4-Channel 32-Bit Frequency/Period/Counter Module
$299.99
Quantity: 1
Claim Your Seller Account
4-Channel 32-Bit Frequency/Period/Counter Module
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

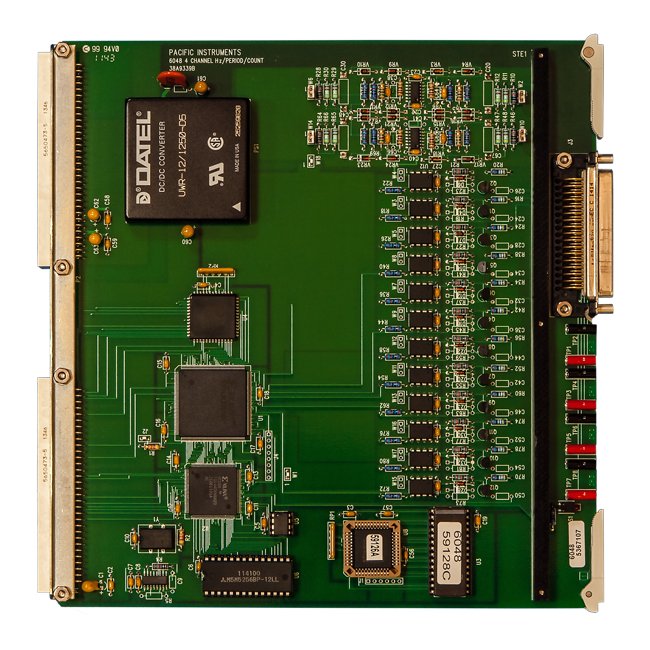

The 4-Channel 32-Bit Frequency/Period/Counter Module is an essential tool for precise data acquisition and control. With four independent 32-bit channels, digital or zero crossing triggers, optic isolated inputs, and noise reduction filters, it offers unparalleled accuracy and reliability in measuring frequencies up to 500 kHz, periods down to 100 µS, and counting events to over 4 billion. It features programmable operating modes, time base selection, and companion calibration relay matrix for versatile applications. Ideal for tachometers, flowmeters, and various transducers, this module delivers digital measurement excellence surpassing traditional voltage-to-frequency converters.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Accuracy Count Accuracy
±1 count
Accuracy Frequency Accuracy
0.01%, ±1 count.
Accuracy Period Accuracy
0.01% down to 1 mS, 0.1% down to 100 µS.
Analog Inputs Zero Crossing Detector Frequency Analog Inputs Zer
DC to 100 kHz
Analog Inputs Zero Crossing Detector Impedance
100K Ohms
Analog Inputs Zero Crossing Detector Level Analog Inputs Zero Cr
100 mV minimum to 100 Volts maximum.
Analog Inputs Zero Crossing Detector Type
Differential
Calibration Input Configuration Calibration Input
Two-wire. Signal inputs may be switched individually to the calibration input by program instruction.
Digital Inputs Optic Isolated Frequency Digital Inputs Optic Iso
DC to 500 kHz
Digital Inputs Optic Isolated Isolation
300 V
Digital Inputs Optic Isolated Level Digital Inputs Optic Isolate
Requires 5 Volts at 8 mA to trigger the optic coupled input. Inputs are protected to ±50 Volts.
Isolated Power Current
1 Amp maximum.
Isolated Power Voltage
12 V
Mechanical Humidity
Up to 95% without condensation. %
Mechanical Mounting
Occupies one slot in Series 6000 enclosures.
Mechanical Temperature
0 to +50 ºC
Ordering Information Ordering Information
6048-4-Channel, 32-bit frequency/period/counter module.
Outputs Format
Output as two 16-bit data words on adjacent output ports.
Outputs Resolution
32-bits
Overview Measurement Type
Frequency
Range Count Range
0 to 232
Range Frequency Range
0.1 Hz to 500 kHz
Range Period Range
100 µS to over 11 million hours.
Relay Performance Capacity Relay
1 Amp, 30 VDC or 0.5 Amp, 125 VAC (resistive load).
Relay Performance Operating Time Relay
3 ms
Signal Inputsoutputs Configuration Signal Io
Two-wire with shield.
Signal Inputsoutputs Number Signal Io
16
Specifications Connectors
50-pin, Type D. Connector is mounted on the front and the mate is supplied.
Time Base Accuracy
±0.01%
Time Base Periods
1 or 10
Time Base Selection
0.1 Hz, 1 Hz, 10 Hz, 100 Hz, 1 kHz, 10 kHz, 100 kHz, 1 MHz, 10 MHz.
