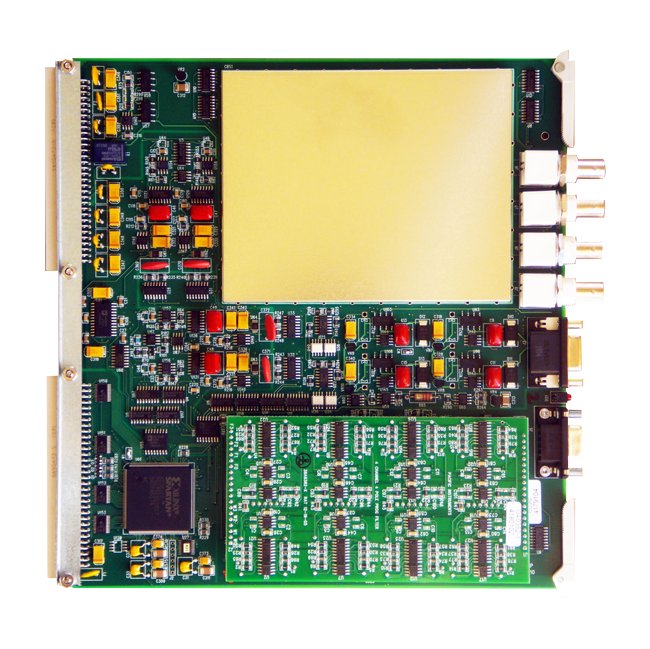

The 4-Channel Charge/IEPE Amplifier-Digitizer Model 6036 is a high-performance solution for measuring dynamic acceleration, pressure, force, and strain with precision and accuracy. Featuring dual inputs for charge and IEPE transducers, this programmable amplifier offers versatile voltage gains from 1 to 5,000 with ±0.05% accuracy. With a 100 kHz analog bandwidth, a programmable 4-pole low-pass filter, and up to 200kS/s per channel at 16-bit resolution, this amplifier-digitizer ensures reliable data acquisition. Ideal for institutional and government buyers, it meets stringent industry standards and offers extensive calibration options for optimal performance.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Amplifier Bandwidth
0.5 Hz to 100 kHz (-3 dB) for gains to 1,000.
Amplifier Cm Voltage
±10 V
Amplifier Common Mode
70 dB plus gain in dB to 110 dB, DC to 60Hz.
Amplifier Noise
0.3 mV RMS referred to output.
Amplifier Slew Rate
3 V/µS
Amplifier Zero
Automatic zero to ±1.0 mV.
Amplifier Zero Stability
±1 mV at constant temperature, ±0.2 mV/ºC.
Calibration Source Attenuator
Programmable 1.0 and 0.01 attenuation. Attenuator accuracy at DC is ±0.02% for 1.0 and ±0.01% for 0.01. Rear panel connector is provided to monitor the calibration attenuator output.
Calibration Source Impedance
50K Ohms when any channels on module are selected for calibration. 10,000 Megohms when channels not selected.
Calibration Source Input
Differential, 2-wire with shield. Located on the rear panel of enclosure.
Digitizer Alarms
Two alarms each with upper and lower limits that are programmable from negative to positive full scale. Limits checked on each ADC sample.
Digitizer Continuity
Monotonic to 15 bits.
Digitizer Digitizer Linearity
±1-1/2 LSB (±0.004%)
Digitizer Rate
Programmable up to 200 kS/s per channel.
Digitizer Resolution
16-bits, two's complement output.
Digitizer Sample
±50 ns channel-to-channel time correlation.
Filter Frequency
Continuously programmable with 1 Hz (lower frequencies) to 10 Hz (higher frequencies) resolution, ±2% accuracy.
Filter Other
Other filter characteristics and cut offs available.
Filter Post Filter Gain
Post-filter gain of 1 or 10 may be selected independently for each output.
Filter Type
Continuously programmable. Four-pole, low-pass Bessel (24 dB/octave).
Input Accuracy
±0.2 %
Input Charge Calibration
Signal from external calibration source applied through a 2,200 pF capacitor to the charge input and calibrated to ±0.2%.
Input Charge Input
Three ranges: 250,000 pC, 10,000 pC and 500 pC full scale.
Input Configuration Iepe Input
Voltage input, AC-coupled, 2-wire with shield.
Input Excitation
Current source 2 to 20 mA, 6 mA supplied.
Input Gain
0.04 mV/pC to 1,000 mV/pC with 0.05% resolution. Gains to 10,000 mV/pC with lower accuracy.
Input Gain Iepe Input
Programmable from 1 to 5,000 with 0.05% resolution.
Input Gain Stability
±0.02% for 30 days, ±0.005%/ºC.
Input Gain Steps
Calibrated gains of 1, 2, 3, 5, 10, 20, 30, 50, 100, 200, 300, 500, 1,000, 2,000, 3,000 and 5,000 with ±0.1% accuracy or variable gain.
Input Hi Pass Filter
Frequency response is greater than 0.5 Hz. May be bypassed for quasi-static measurements.
Input Input Impedance Iepe Input
100K Ohms
Input Input Protection
±15 Volts differential, ±15 Volts common mode without damage.
Input Input Protection Iepe Input
±30 Volts differential, ±15 Volts common mode without damage.
Input Linearity
0.1% of full scale at 1 kHz.
Input Linearity Iepe Input
±0.01% for gains <1,000, ±0.02% for gains 1,000 and above.
Input Maximum Input
Over two-times the full scale charge input without charge converter overload.
Input Noise 10 Khz
0.02 pC RMS plus 0.006 pC RMS per 1000 pF of source capacitance referred to input.
Input Voltage Calibration
Signal from external calibration source is applied to the amplifier input through a programmable attenuator.
Overview Analog Bandwidth
100 kHz
Overview Excitationtransducer Power
ICP
