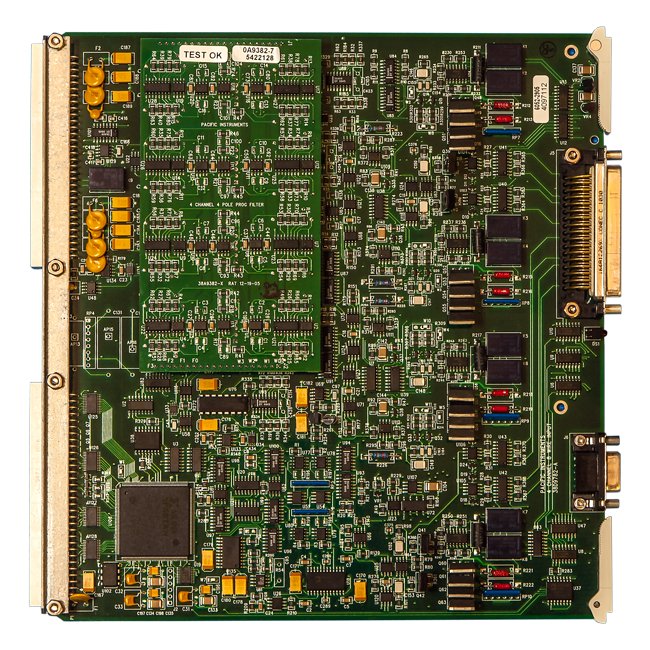

The 4-Channel Strain/Bridge Transducer Amplifier with Filter-Digitizer is a high-performance signal conditioning system designed for demanding applications in load control and precision measurements. With four programmable channels supporting quarter, half, and full bridge transducers, this amplifier ensures accurate and reliable data acquisition. It features automatic zero and balance calibration, gains programmable up to 5,000 with 0.05% accuracy, and a buffered 10V analog output. The included four-pole or six-pole programmable filter with cutoff frequency adjustment enhances signal quality for precise analysis. Ideal for institutions and government agencies requiring stringent performance standards.
Product Specifications
Amplifier Analog Output Amplifier
±10 Volts full scale, wideband or filtered. Accuracy is ±0.05%.
Amplifier Bandwidth
10 kHz (-3 dB) or better.
Amplifier Common Mode
74 dB plus gain in dB up to 106 dB, DC to 60 Hz for ±10 Volts.
Amplifier Gain
Programmable from 1 to 5,000 in 1, 2, 3, 5 steps with ±0.05% accuracy.
Amplifier Gain Stability
±0.01%, ±0.004%/ºC.
Amplifier Impedance
50 Megohms, shunted by 1,000 pF.
Amplifier Linearity Amplifier
±0.01% for gains < 1,000, ±0.02% for gains 1,000 and higher.
Amplifier Noise 10 Hz
0.1 µV RMS RTI plus 0.5 mV RMS RTO
Amplifier Noise Wideband
2 µV RMS RTI plus 0.5 mV RMS RTO
Amplifier Output
Buffered Analog Output, ±10 Volts full scale, wideband or filtered. Accuracy is ±0.05%.
Amplifier Protection
Instrumentation amplifier ±50 Volts differential and Common Mode. Bridge ±15 Volts Common Mode.
Amplifier Recovery
800 µS to ±0.1% for 10X overload to ±10 V.
Amplifier Slew Rate
5 V/µS
Amplifier Source Current
±25 nA, ±0.01 nA/ºC
Amplifier Zero Amplifier
Automatic to ±1 µV RTI, ±0.5 mV RTO.
Amplifier Zero Stability
±5 µV RTI, ±1 mV RTO, ±1 µV/ºC RTI, ±0.2 mV/ºC RTO. Short term: ±2 µV RTI, ±0.4 mV RTO.
Calibration Shunt
Two steps shunt, internal or external connection, 174k Ohm 0.1% and 357k Ohm 0.1%
Calibration Voltage Substitution
Alternate input for external calibration source. Programmable attenuator with steps of 1, 0.1 and 0.01, ±0.02% accuracy. Output of the attenuator is provided for calibration.
Calibration Zero Calibration
Amplifier input disconnected and shorted.
Digitizer Alarms
Two alarms each with programmable upper and lower limits and persistence checked on each ADC sample.
Digitizer Continuity
Monotonic to 15 bits.
Digitizer Digitizer Linearity
±2 LSB (±0.006%)
Digitizer Digitizer Note
See Series 6000 to add the following onboard digitizing capability.
Digitizer Resolution
16-bits, two's complement output.
Digitizer Sample Rate
0 to 20 kS/s per channel
Excitationtransducer Power Current
50 mA limited to 70 mA.
Excitationtransducer Power Excitation Noise
200 µV peak-to-peak.
Excitationtransducer Power Monitor
Calibration mode applies excitation voltage to amplifier input.
Excitationtransducer Power Regulation
±0.01% for ±10% line and no-load to full-load using remote sensing.
Excitationtransducer Power Stability
±0.01%, ±0.005 %/ºC
Excitationtransducer Power Voltage Excitation
Programmable from 0-12 Volts in 1 Volt ±0.1% steps, with 3.3 mV resolution adjustment.
Filter Other
Other filter characteristics and cut offs available.
Filter Programmable Filter
Four or Six-pole, low pass Butterworth. Continuously programmable 4Hz to 5kHz, 1.25Hz resolution, 3% accuracy. 0.5 mV RMS RTO.
Input Balance
Automatic by program control. Balance accuracy ±0.05% of range, ±1 mV RTO. Stability ±0.02% for 8 hours, ±0.005%/ºC. Range set by resistor up to 10 mV/V, 2 mV/V (for 350 Ohms) installed.
Input Configuration
4 channels, 2 to 8 wire with guard shield. Bridge configuration is programmable for 1/4, 1/2 and full bridge, 120 Ohm and 350 Ohm.
Mechanical Connectors
Input is 50-pin Type D output is 9-pin Type D.
Mechanical Mounting
Occupies one slot in Series 6000 enclosures.
Mechanical Operating Temperature
0 to +50 ºC
Overview Analog Bandwidth
10 kHz
Overview Excitationtransducer Power
Voltage
