4-Contact Mini Control Relay for Institutional Use
4-Contact Mini Control Relay for Institutional Use
SKU:REL-f8b545
Enhance your control systems with the 4-Contact Mini Control Relay for reliable DC operation in institutional settings.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
4-Contact Mini Control Relay for Institutional Use
$29.99
Quantity: 1
Claim Your Seller Account
4-Contact Mini Control Relay for Institutional Use
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

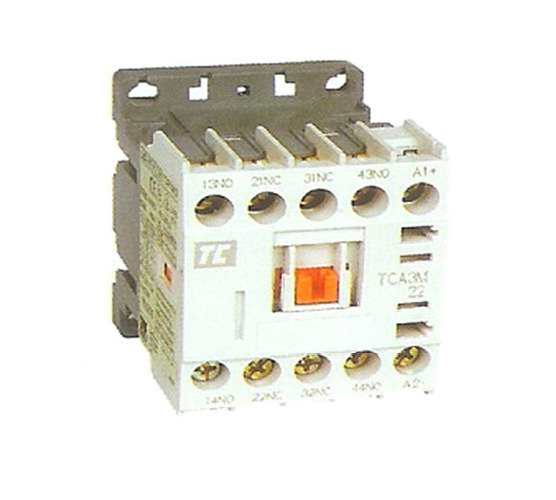

The 4-Contact Mini Control Relay by Shamrock Controls is engineered for industrial and institutional applications. With 2 Normally Open (NO) and 2 Normally Closed (NC) contacts, this relay offers reliable Direct Current (DC) operation with a Mechanical Life of 20 million cycles. It meets stringent inductive and resistive load requirements, making it ideal for heavy-duty usage in commercial settings. Upgrade your control systems with this durable and high-performance relay.
Product Specifications
Accessories Auxiliary Contact Blocks Ith 10a
Item #: TA1-M20Composition: 2 Normally Open (NO)Mounting: Front MountItem #: TA1-M02Composition: 2 Normally Closed (NC)Mounting: Front MountItem #: TA1-M11Composition: 1 Normally Open (NO) + 1 Normally Closed (NC)Mounting: Front MountItem #: TA1-M40Composition: 4 Normally Open (NO)Mounting: Front MountItem #: TA1-M31Composition: 3 Normally Open (NO) + 1 Normally Closed (NC)Mounting: Front MountItem #: TA1-M22Composition: 2 Normally Open (NO) + 2 Normally Closed (NC)Mounting: Front MountItem #: TA1-M13Composition: 1 Normally Open (NO) + 3 Normally Closed (NC)Mounting: Front MountItem #: TA1-M04Composition: 4 Normally Closed (NC)Mounting: Front MountItem #: TA8-M10Composition: 1 Normally Open (NO)Mounting: Side MountItem #: TA8-M01Composition: 1 Normally Closed (NC)Mounting: Side Mount
Accessories Coil Suppressor Varistor
Item #: TA9-M980/1Voltage: 24 to 48 Alternating Current (AC) Voltage (V)Item #: TA9-M980/2Voltage: 60 to 127 Alternating Current (AC) Voltage (V)Item #: TA9-M980/3Voltage: 200 to 240 Alternating Current (AC) Voltage (V)Item #: TA9-M980/4Voltage: 12 to 24 Direct Current (DC) Voltage (V)Item #: TA9-M980/5Voltage: 30 to 72 Direct Current (DC) Voltage (V)Item #: TA9-M980/6Voltage: 100 to 127 Direct Current (DC) Voltage (V)Item #: TA9-M980/7Voltage: 200 to 250 Direct Current (DC) Voltage (V)
Accessories Front Mounted Electronic Timers
Item #: TA2-M/1NVoltage: 24 to 48 Alternating Current (AC)/Direct Current (DC) Voltage (V)Time: 0.1 to 30 Seconds (s)Delay: OnItem #: TA3-M/1FVoltage: 24 to 48 Alternating Current (AC)/Direct Current (DC) Voltage (V)Time: 0.1 to 30 Seconds (s)Delay: OffItem #: TA2-M/2NVoltage: 100 to 240 Alternating Current (AC) Voltage (V)Time: 0.1 to 30 Seconds (s)Delay: OnItem #: TA3-M/2FVoltage: 100 to 240 Alternating Current (AC) Voltage (V)Time: 0.1 to 30 Seconds (s)Delay: Off
Accessories Note For Accessories
Mechanical Interlock ComponentsCable Kits for Line and Load Sides
Inductive Load Inductive Load Makingbreaking Direct Current Dc D
0.7 A
Inductive Load Inductive Load Rated Direct Current Dc Duty At 12
1.1 A
Inductive Load Inductive Load Rated Direct Current Dc Duty At 24
0.55 A
Inductive Load Inductive Load Rated Direct Current Dc Duty At 48
0.31 A
Inductive Load Inductive Load Rated Direct Current Dc Duty At 60
0.2 A
Resistive Load Resistive Load Rated Direct Current Dc Duty At 12
5 A
Resistive Load Resistive Load Rated Direct Current Dc Duty At 24
3 A
Resistive Load Resistive Load Rated Direct Current Dc Duty At 48
2.5 A
Resistive Load Resistive Load Rated Direct Current Dc Duty At 60
1 A
Specifications Composition
2 Normally Open (NO) + 2 Normally Closed (NC)
Specifications Controller Type
Direct Current (DC)
Specifications Direct Current Dc Reference Code For 2460 Volt V
BD
Specifications Electrical Life At Alternating Current Ac12 Duty
0.25 Million Operation Cycles
Specifications Electrical Life At Alternating Current Ac15 Duty
0.50 Million Operation Cycles
Specifications Electrical Life At Direct Current Dc13 Duty Cycle
0.50 Million Operation Cycles
Specifications Mechanical Life
20 Million Operation Cycles
Specifications Operation Per Hour
1800
