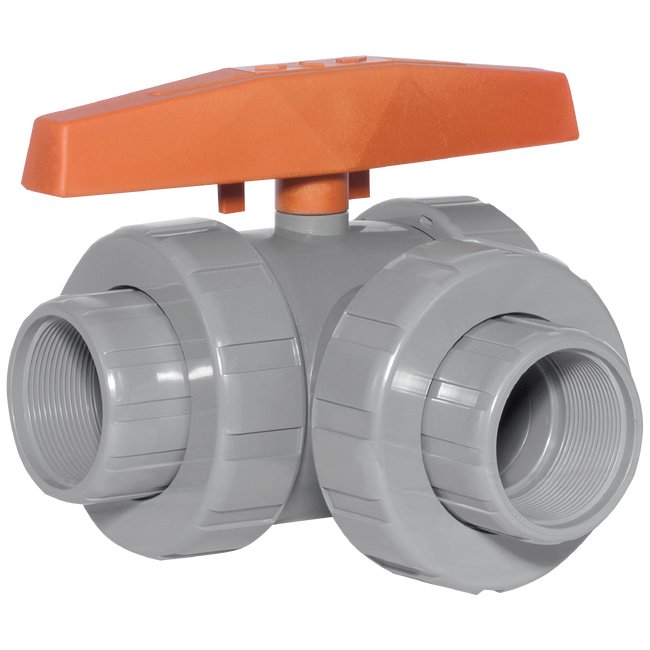

4" CPVC 3-Way Lateral True Union Ball Valve with FPM O-Rings
4" CPVC 3-Way Lateral True Union Ball Valve with FPM O-Rings
SKU:TRU-d155e8
High-performance 4" CPVC 3-Way Lateral Ball Valve - ideal for efficient fluid control in industrial settings.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
4" CPVC 3-Way Lateral True Union Ball Valve with FPM O-Rings
$89.99
Quantity: 1
Claim Your Seller Account
4" CPVC 3-Way Lateral True Union Ball Valve with FPM O-Rings
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 4" CPVC 3-Way Lateral True Union Ball Valve from our LA Series allows seamless redirection of flow between the center, left, and right ports, ensuring efficient fluid control without an OFF position. Constructed with high-quality CPVC body material and FPM o-rings, this valve is designed for durability and reliability in diverse industrial applications. Featuring threaded end connections and a Cv Factor of 450, this valve combines ease of installation with exceptional performance.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications A
8.56 in | 217.42 mm
Specifications B
7.00 in | 177.80 mm
Specifications Body Material
CPVC
Specifications C
9.33 in | 236.98 mm
Specifications Cv Factor
450
Specifications E
10.50 in | 266.70 mm
Specifications End Connection
Threaded
Specifications F
10.44 in | 265.18 mm
Specifications G
18.88 in | 479.55 mm
Specifications H
6.85 in | 173.99 mm
Specifications Seals
FPM
Specifications Size
4"
