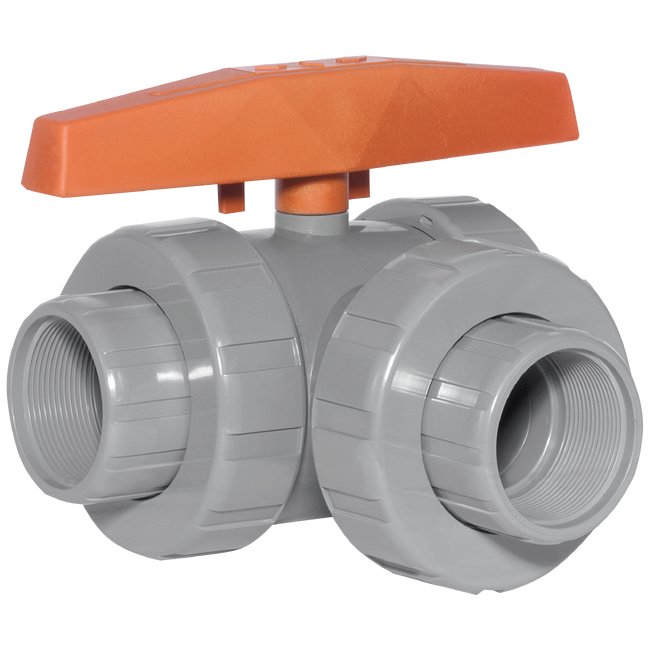

4" CPVC 3-Way Lateral True Union Ball Valves w/EPDM O-Rings

Name: 4" CPVC 3-Way Lateral True Union Ball Valves w/EPDM O-Rings
Brand: Hayward Flow Control
SKU: TRU-b41b42
Price: 79.99 USD
Availability: OutOfStock

SKU:TRU-b41b42

4" CPVC 3-Way Lateral True Union Ball Valves with EPDM O-Rings, designed for efficient flow diversion, threaded end connections, and durable CPVC construction.

$79.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The 4" CPVC 3-Way Lateral True Union Ball Valves with EPDM O-Rings are designed for seamless flow diversion from the center port to either the left or right ports with no OFF position. Constructed from durable CPVC material and featuring EPDM seals, these valves ensure reliable performance. With threaded end connections for easy installation, these valves are sized at 8.56 in | 217.42 mm (A), 7.00 in | 177.80 mm (B), 9.33 in | 236.98 mm (C), 10.50 in | 266.70 mm (E), 10.44 in | 265.18 mm (F), 18.88 in | 479.55 mm (G), and 6.85 in | 173.99 mm (H). The Cv Factor of 450 guarantees efficient flow control.

Product Specifications

Specifications A

8.56 in | 217.42 mm

Specifications B

7.00 in | 177.80 mm

Specifications Body Material

CPVC

Specifications C

9.33 in | 236.98 mm

Specifications Cv Factor

450

Specifications E

10.50 in | 266.70 mm

Specifications End Connection

Threaded

Specifications F

10.44 in | 265.18 mm

Specifications G

18.88 in | 479.55 mm

Specifications H

6.85 in | 173.99 mm

Specifications Seals

EPDM

Specifications Size

4" CPVC 3-Way Lateral True Union Ball Valves w/EPDM O-Rings
