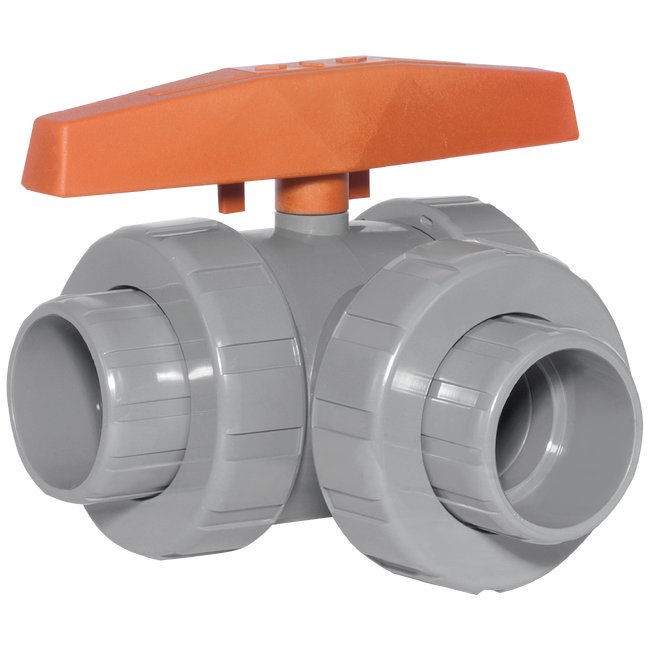

4" CPVC 3-Way Lateral True Union Ball Valves with Flanged End Connections
4" CPVC 3-Way Lateral True Union Ball Valves with Flanged End Connections
SKU:TRU-dea9bc
Reliable 4" CPVC 3-Way True Union Ball Valves for precise flow control in institutional settings.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
4" CPVC 3-Way Lateral True Union Ball Valves with Flanged End Connections
$89.99
Quantity: 1
Claim Your Seller Account
4" CPVC 3-Way Lateral True Union Ball Valves with Flanged End Connections
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 4" CPVC 3-Way Lateral True Union Ball Valves with FPM o-rings and flanged end connections offer seamless flow diversion capability from the center port to either the left or right ports, eliminating the need for an OFF position. Designed for reliability, these valves are ideal for institutional applications requiring precision and durability. With body material in CPVC and seals in FPM, these valves are rated @ 150PSI, ensuring optimal performance in demanding environments. Sizes up to 2" feature socket and threaded end connections, providing versatility and ease of installation.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications A
8.56 in | 217.42 mm
Specifications B
7.00 in | 177.80 mm
Specifications Body Material
CPVC
Specifications C
9.33 in | 236.98 mm
Specifications Cv Factor
450
Specifications E
10.50 in | 266.70 mm
Specifications End Connection
Flanged
Specifications F
10.44 in | 265.18 mm
Specifications G
18.88 in | 479.55 mm
Specifications H
6.85 in | 173.99 mm
Specifications Seals
FPM
Specifications Size
4"
