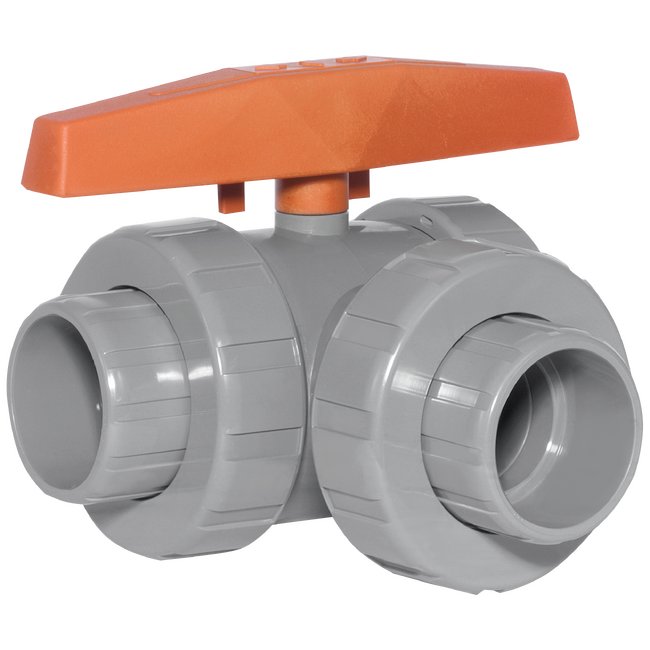

4" CPVC 3-Way Lateral True Union Ball Valves with FPM O-Rings
4" CPVC 3-Way Lateral True Union Ball Valves with FPM O-Rings
SKU:TRU-170b24
High-quality 4" CPVC 3-Way Lateral True Union Ball Valves with FPM O-Rings for efficient flow diversion. Socket end connections for easy installation.
Regular price
$99.99
Regular price
Sale price
$99.99
Unit price
per
Initiate Order
4" CPVC 3-Way Lateral True Union Ball Valves with FPM O-Rings
$99.99
Quantity: 1
Claim Your Seller Account
4" CPVC 3-Way Lateral True Union Ball Valves with FPM O-Rings
$99.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 4" CPVC 3-Way Lateral True Union Ball Valves with FPM O-Rings, part of the LA Series, allow for seamless flow diversion from the center port to either side without an OFF position. Constructed with CPVC body material and FPM seals, these valves ensure reliable performance and durability. Featuring socket end connections, these valves adhere to high standards of quality and are rated at 150PSI. With precise measurements and a Cv Factor of 450, these valves are ideal for a wide range of applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications A
8.56 in | 217.42 mm
Specifications B
7.00 in | 177.80 mm
Specifications Body Material
CPVC
Specifications C
9.33 in | 236.98 mm
Specifications Cv Factor
450
Specifications E
10.50 in | 266.70 mm
Specifications End Connection
Socket
Specifications F
10.44 in | 265.18 mm
Specifications G
18.88 in | 479.55 mm
Specifications H
6.85 in | 173.99 mm
Specifications Seals
FPM
Specifications Size
4"
