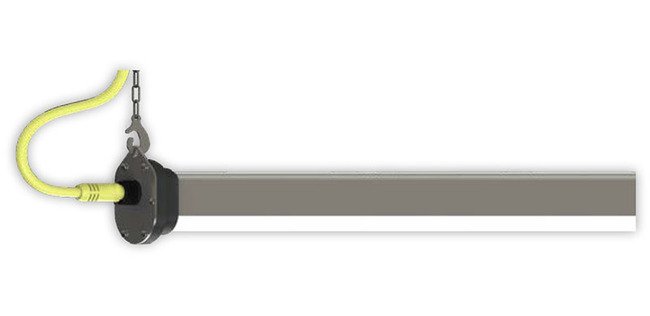

Linear Wash Down LED Luminaire for Task, Inspection & Area Lighting in Food Processing Linear. Up To 20,000 Lumens, High-Pressure Hose Down, NSF Rated.
Product Specifications
Construction And Materials
316 SS brackets and hardware.Integrated heavy-duty aluminum heat spreader.Seamless polymeric outer shell provides IP69K ingress protection and is specialized for superior chemical resistance.All G&G luminaires and components (with the exception of our LED boards and drivers) are proudly manufactured and assembled in the USA.
Lumen And Power Data Current At 120 Volt V Voltage
0.64 A
Lumen And Power Data Current At 277 Volt V Voltage
0.27 A
Lumen And Power Data Lumens
10,000 lm
Lumen And Power Data Wattage
75 W
Alternating Current Ac Input Voltage
120 to 277 V
Ambient Temperature
-20 to 50 ºC
Efficacy
130+ lm/W
Illuminance
290 FC at 3' (Standard Output, 90 CRI)
Light Emitting Diode Led L70 Time At 25 Degr
140,000 h

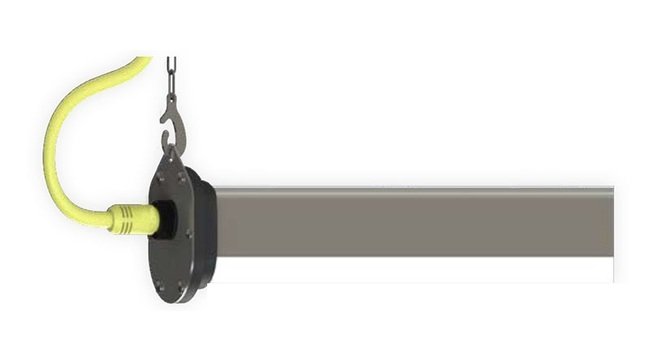

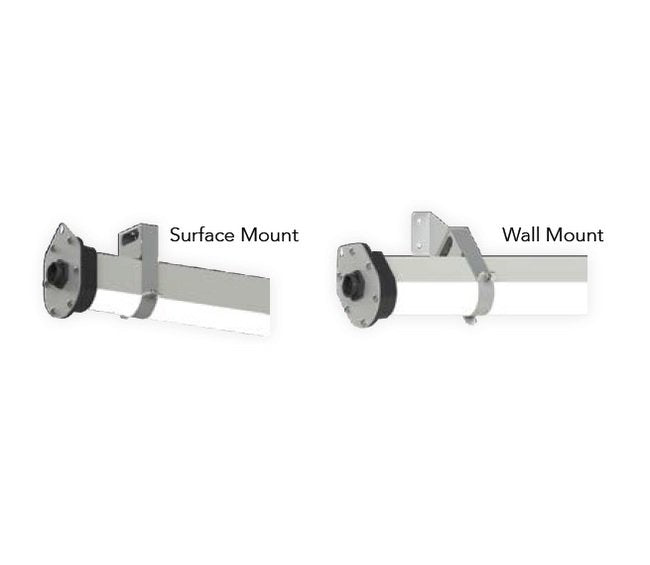

Mounting
Cable/Chain Mount Included Surface Mount Optional
Warranty
5 y

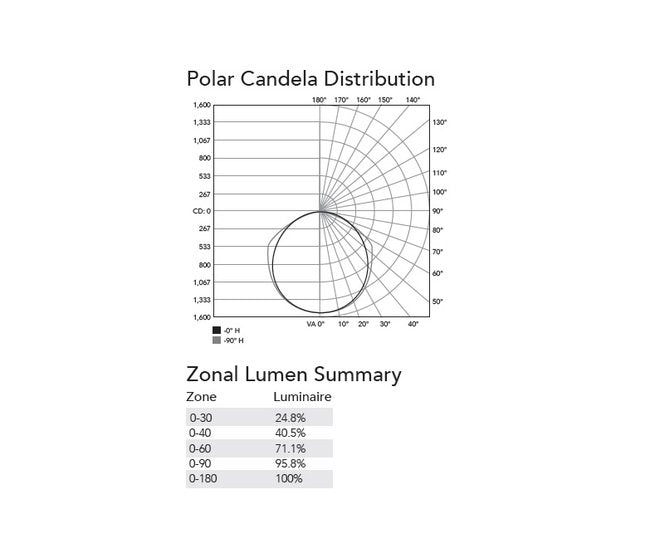

Photometry
Based on DTC Report Test #: 14404-TFixture photometry has been conducted by a NVLAP accredited testing laboratory in accordance with IESNA LM-79-08. IESNA LM-79-08 specifies the entire luminaire as the source resulting in a fixture efficiency of 100%.
Product Features

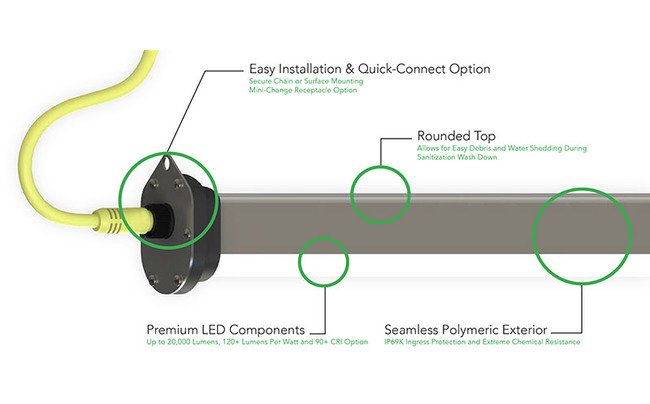

Compact High Output Design - Engineering around the latest in LED technology to achieve a low-profile 2'' design. The end result is a strong, compact luminaire that is installation friendly and packs a punch at up to 20,000 lumens. Rounded top allows for water and debris to easily roll off during sanitization wash down process.Superior Waterproof and Chemical Resistance - A seamless copolyester outer shell provides IP69K ingress protection (1500 PSI) along with extreme chemical resistance. Designed for heavy hosedown applications and/or daily sanitation.Coextruded Copolyester/Aluminum Housing - Our patented process combines copolyester and aluminum together, with no seals or gaskets. The result is a single piece enclosure with excellent heatsinking characteristics for long lifetime.Easy Installation and Quick-Connect Option - Secure Chain or Surface Mounting, Mini-Change Receptacle Option.Rounded Top - Allows for Easy Debris and Water Shedding during Sanitization Wash Down.Premium LED Components - Up to 20,000 Lumens, 120+ Lumens Per Watt and 90+ CRI Option.Seamless Polymeric Exterior - IP69K Ingress Protection and Extreme Chemical Resistance.

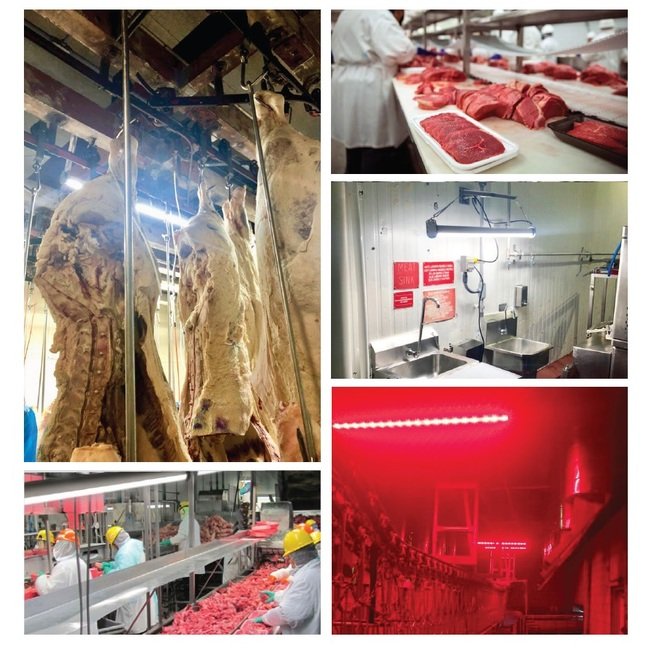

Specifications Application
Agricultural | De-Boning Stations | Freezer Tunnels | Processing Lines | Slaughter | Spiral Coolers | U.S Department of Agriculture (USDA) Inspection Stations | Wash Down Areas | Work Stations
Specifications Color
Blue | Red
Specifications Color Rendering Index Cri
90+
Specifications Color Temperature
4000 K

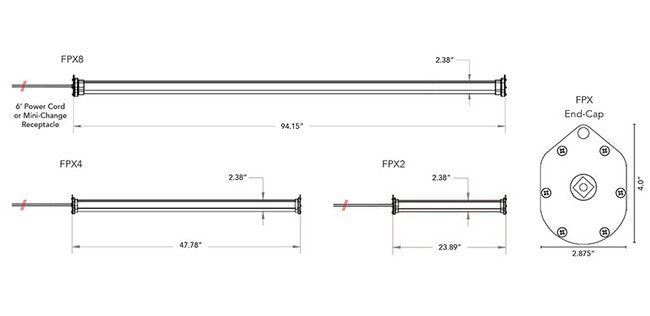

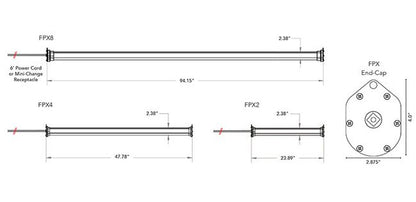

Specifications Length
4 ft
Specifications Lumen Output
2,500 lm/ft
Specifications Option
0 to 10 V Dimming Mini-Change Receptacle, 5 Pole
Specifications Output Type
High Output (HO)
Specifications Regulatory Qualification
cULus Listed | NEMA 4X Rated | NEMA 6P Rated | NSF Certified | UL Listed for Wet Locations
