4 Feet (ft) Low-Profile Linkable Light Emitting Diode (LED) Super High Output (SO) Linear Luminaire Light

Name: 4 Feet (ft) Low-Profile Linkable Light Emitting Diode (LED) Super High Output (SO) Linear Luminaire Light
Brand: G&G Industrial Lighting
SKU: LOW-b81087
Price: 49.99 USD
Availability: OutOfStock

SKU:LOW-b81087

N/A

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Industrial Harsh-Environment Linear.Low-Profile, High-Pressure Hose Down Rated.

Product Specifications

Construction And Materials

Convenient push-and-click connectors let you easily and rapidly install Leader Cables and Jumper Cables. Multiple cable lengths support a variety of layouts.Integrated aluminum heat spreader.Seamless copolyester outer shell provides IP68/IP69K ingress protection and is specialized for superior chemical resistance. Additional protective coating is available which integrates a UV inhibitor and UV blocker for outdoor applications.All G&G luminaires and components (with the exception of our LED boards and drivers) are proudly manufactured and assembled in the USA

Dimensions Fixture Diameter

1.0 in

Dimensions Fixture Length Single End

46.27 in

Dimensions Fixture Length Thru Wire

47.82 in

Dimensions Mounted Height

1.75 in

Dimensions Mounted Width

1.25 in

Electrical System Input Power

Stays consistent over life.

Electrical System Nominal Power Factor

0.9 pF

Electrical System Temperature Rating

Designed to operate in temperatures -40 ºC to 55 ºC.

Electrical System Total Harmonic Distortion

< 20 %

Lumen And Power Data Fixture Watt

58 W

Lumen And Power Data Lumens

8,000 lm | 140 lm/W

Ambient Temperature

-40 to 55 ºC

Lifetime

Designed to last 100,000 Hours at 25 ºC

Mounting

Ceiling | Wall

Run Length

Up to 72' of luminaires (not including jumpers)

Color Rendering Index Cri

Warranty

5 y

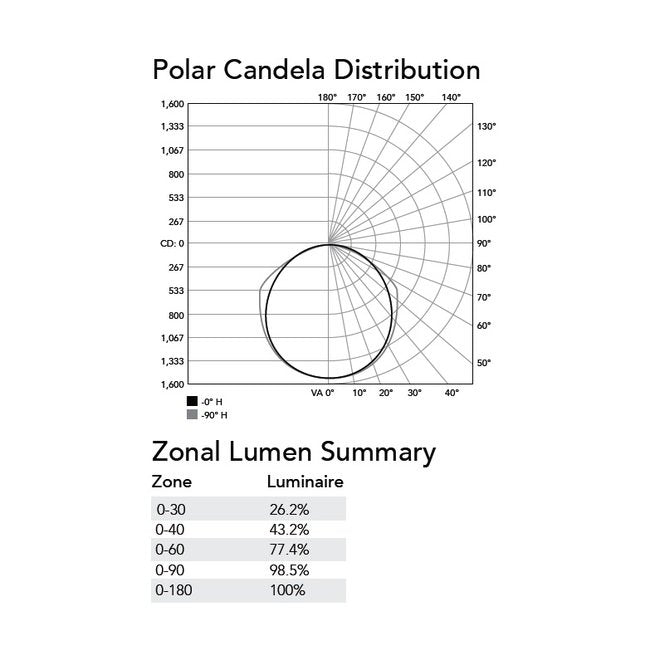

Photometry

Based on DTC Report Test #: 14404-TFixture photometry has been conducted by a NVLAP accredited testing laboratory in accordance with IESNA LM-79-08. IESNA LM-79-08 specifies the entire luminaire as the source resulting in a fixture efficiency of 100%.

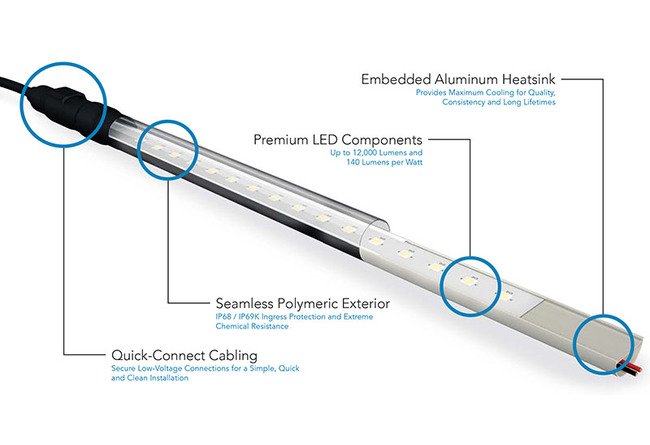

Product Features

Easy to Install Quick-Connect Cabling - Convenient push-and-click connectors and cabling make WPX Series fixtures easy to install and daisy chain. Secure Low-Voltage Connections for a Simple, Quick and Clean InstallationEmbedded Aluminum Heatsink - Embedded aluminum heatsink provides ample cooling for a long lifetime and allows the fixture to operate in cold and hot weather environments. Provides Maximum Cooling for Quality, Consistency and Long Lifetimes.Superior Chemical and UV Resistance - Seamless polymeric outer shell provides IP68/IP69K ingress protection and is specialized for superior chemical resistance. An additional protective coating is available which integrates a UV inhibitor and UV blocker for outdoor applications.Premium LED Components - Up to 12,000 Lumens and 140 Lumens per Watt.Seamless Polymeric Exterior - IP68/IP69K Ingress Protection and Extreme Chemical Resistance.

Specifications Application

Specifications Color

Amber | Blue | Green | Red

Specifications Color Temperature

5000 K

Specifications Dimming

No Dimming

Specifications Length

4 ft

Specifications Lens Diffusion

Chemical Resistant Clear Lens

Specifications Lumen Output

2,000 lm/ft

Specifications Output Type

Super High Output (SHO)

Specifications Regulatory Qualification

Specifications Through Wired

Connectors on Input & Output for ability to Daisy Chain fixtures

Specifications Ultraviolet Uv Protection

No Coating, Rated for Indoor Use

4 Feet (ft) Low-Profile Linkable Light Emitting Diode (LED) Super High Output (SO) Linear Luminaire Light
