4 HP Gasoline Engine 3" NPT Self-Priming Diaphragm Pump by AMT®

4 HP Gasoline Engine 3" NPT Self-Priming Diaphragm Pump by AMT®

PRO-d08031

AMT® 4 HP Gasoline Diaphragm Pump: Durable, self-priming, and versatile for mud, slurry, sewage, and thick liquids.

$1,899.99
$1,899.99
Sale

Initiate Order

4 HP Gasoline Engine 3" NPT Self-Priming Diaphragm Pump by AMT®

4 HP Gasoline Engine 3" NPT Self-Priming Diaphragm Pump by AMT®

$1,899.99

Quantity: 1

Claim Your Seller Account

4 HP Gasoline Engine 3" NPT Self-Priming Diaphragm Pump by AMT®

4 HP Gasoline Engine 3" NPT Self-Priming Diaphragm Pump by AMT®

$1,899.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

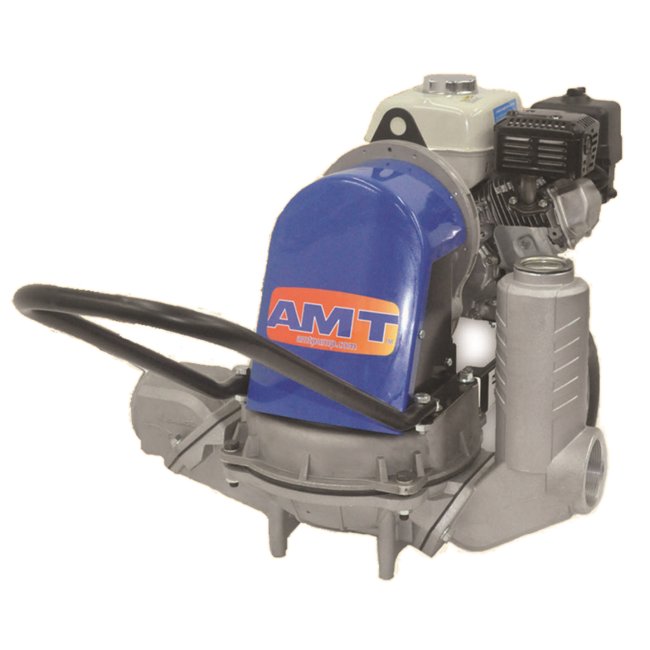

The AMT® 337G-96 4 HP Gasoline Engine 3" NPT Self-Priming Diaphragm Pump is a reliable and durable solution for pumping mud, slurry, sewage, and thick liquids. With a heavy-duty forged gear-driven transmission and self-priming capability to 25 ft lift, this pump ensures efficient operation. It features a Thermoplastic Santoprene Diaphragm, sand-cast aluminum construction for portability, and can handle solids up to 1-5/8". Ideal for various applications, it offers driver options including gasoline, diesel, or electric motors, meeting the needs of different users.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

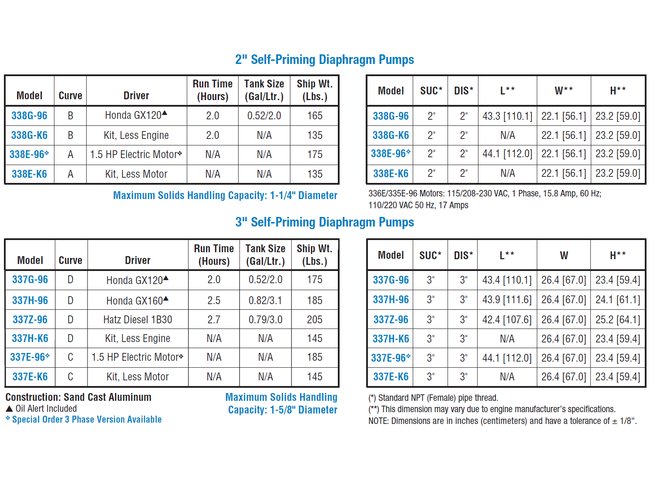

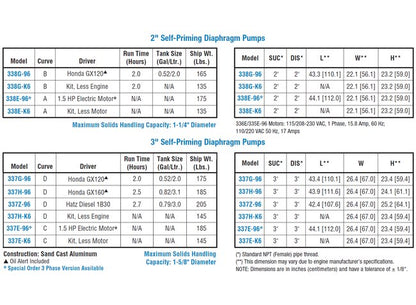

Product Specifications

Curves 0

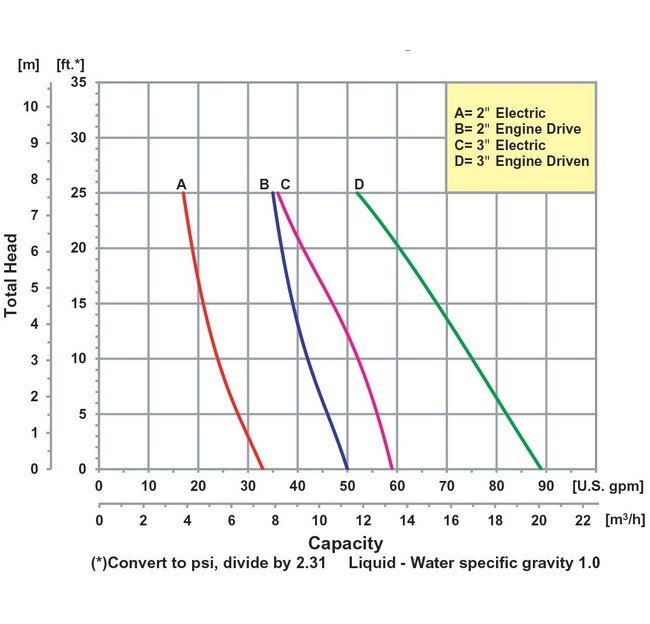

Performance Curves
Specifications 0
Sand Cast Aluminum Construction for Portability and DurabilityModular Component Design Permits Easy Maintenance and CleanoutMaximum Solids Handling up to 1-5/8 InSelf-Priming to 25 Ft. Lift90° Rotatable Base on All ModelsThermoplastic Santoprene DiaphragmDelivers up to 90 GPM
Specifications Customs Code
HTS Code 8413500050
Specifications Driver
Honda GX120 .75 Kyd Gasoline Engine

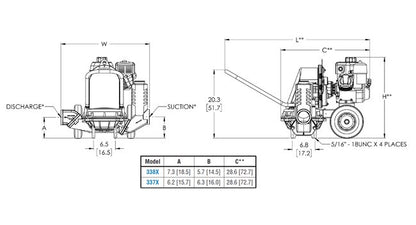

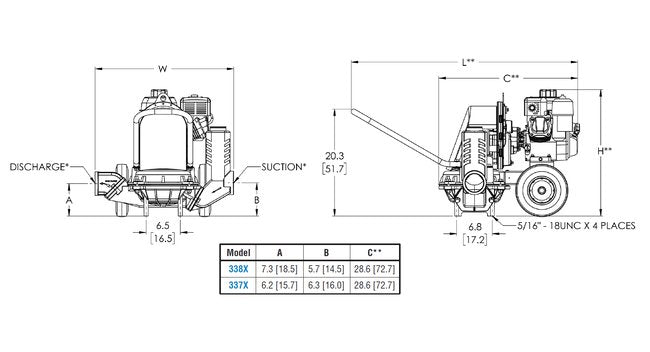

Specifications Height
23 in | 594.36 mm
Specifications Inlet Size
3" FNPT
Specifications Length
43 Inch | 110.24 Centimeter | 3.62 ft | 43 in | 1.1024 m | 1102.36 mm
Specifications Manufacturer
American Machine and Tool Company
Specifications Motor Frame
.75 Kyd
Specifications Porting Position
3" FNPT
Specifications Power
4 hp
Specifications Sku
AT337G96SP
Specifications Weight
79.38 Kilogram | 79.38 kg | 175 lbs
Specifications Width
26 Inch | 26 in | 0.6706 m | 670.56 mm
