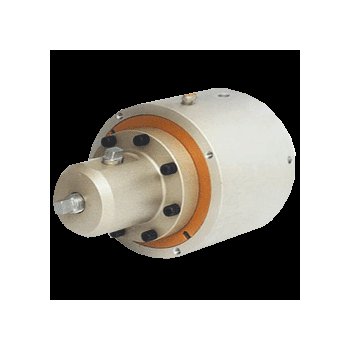

4 Inch Bore Air Powered Intensifiers

Name: 4 Inch Bore Air Powered Intensifiers
Brand: Compact Automation Products
SKU: INT-6d142f
Price: 349.99 USD
Availability: OutOfStock

SKU:INT-6d142f

Efficiently intensify oil pressure with Compact Automation Products 4 Inch Bore Air Powered Intensifiers. Rugged, space-efficient aluminum design. Pressure up to 2400 psi.

$349.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Compact Automation Products 4 Inch Bore Air Powered Intensifiers from the CI series are expertly designed boosters that efficiently intensify oil pressure with a maximum output pressure of 2400 psi. These intensifiers feature a rugged, space-efficient aluminum design, ensuring durability and low weight for versatile applications. With pressure intensification factors of 4 to 12, three mounting choices, and optional magnetic piston capability, these intensifiers offer reliability, long life, and low friction for seamless operation.

Product Specifications

Features Features

Rugged space efficient, low weightAluminum designLong life/Low frictionThree mounting choicesOptional Magnetic piston (Option "ACI")

Specifications Construction Material

Aluminum | Other

Specifications High Pressure Hp Outlet Bore Size High

2 in

Specifications High Pressure Hp Outlet Bore Size Low

0.125 in

Specifications Maximum Outlet Flow High

9 inÂ³/min

Specifications Maximum Outlet Flow Low

1 inÂ³/min

Specifications Maximum Output Pressure High

2400 psi

Specifications Maximum Output Pressure Low

800 psi

Specifications Oil Based Hydraulic Fluid

Yes

Specifications Piston Travel High

3 in

Specifications Piston Travel Low

1 in

Specifications Pneumatic

Yes

Specifications Pressure Inlet Bore Size Low

4 in

Specifications Pressure Intensification Factor High

Specifications Pressure Intensification Factor Low

Specifications Series

CI Series

4 Inch Bore Air Powered Intensifiers
