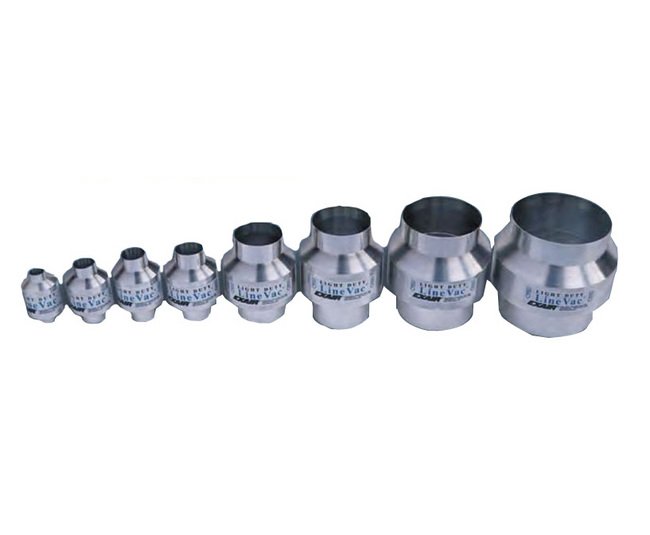

4 Inch Inlet Diameter Light Duty Line Vac Conveyor for Small Material Conveyance

Name: 4 Inch Inlet Diameter Light Duty Line Vac Conveyor for Small Material Conveyance
Brand: Exair LLC
SKU: LIG-6351d8
Price: 399.99 USD
Availability: OutOfStock

SKU:LIG-6351d8

Efficiently convey small materials with the 4 Inch Inlet Diameter Light Duty Line Vac Conveyor.

$399.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

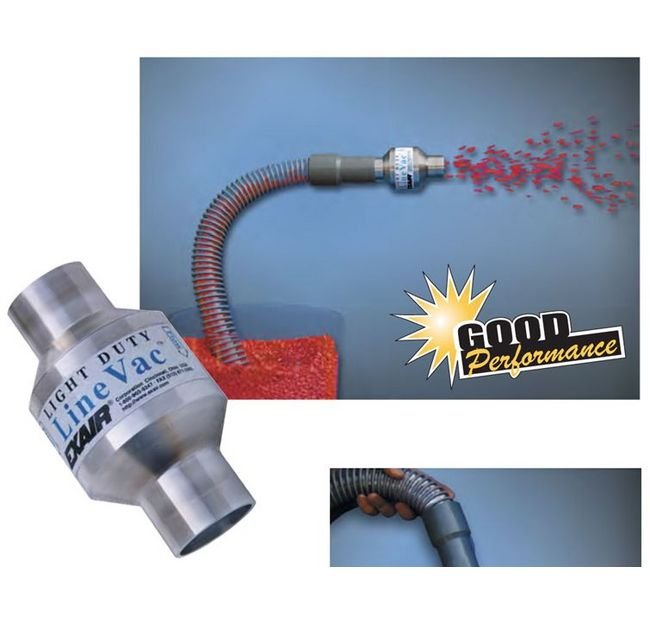

The 4 Inch Inlet Diameter Light Duty Line Vac Conveyor is the optimal solution for effectively conveying small volumes of materials over short distances. With a pressure rating of 80 psig, an air consumption of 58.50 SCFM, and an aluminum construction, this conveyor is ideal for chip removal, fiber tensioning, filling operations, hopper loading, and more. Its compact design, no moving parts, and quiet operation make it suitable for various applications. Compliant with Federal/DoD procurement standards, FAR compliance factors, and industry-specific certifications, this conveyor ensures reliable and efficient material conveying in institutional settings.

Product Specifications

Specifications Advantages

Specifications Air Consumption

58.50 SCFM | 1656 SLPM

Specifications Applications

Specifications Dimension E

2.75 in | 70 mm

Specifications Dimension F

1.06 in | 27 mm

Specifications Dimension G

1/2 NPT

Specifications Inlet Size

4 in | 102 mm

Specifications Inside Diameter

3.75 in | 95 mm

Specifications Outlet Diameter

4 in | 102 mm

Specifications Outside Diameter

5.25 in | 133 mm

Specifications Overall Length

5.06 in | 129 mm

Specifications Pressure

80 psig | 5.5 bar
