4 Inch Metal Hub Wheel Brush with CeramiX Abrasive Filament
4 Inch Metal Hub Wheel Brush with CeramiX Abrasive Filament
SKU:ABR-ad7030
Achieve efficient deburring with Tanis® 4-inch Metal Hub Wheel Brush - CeramiX Abrasive Filament. Optimal for precision machining tasks.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
4 Inch Metal Hub Wheel Brush with CeramiX Abrasive Filament
$29.99
Quantity: 1
Claim Your Seller Account
4 Inch Metal Hub Wheel Brush with CeramiX Abrasive Filament
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your machining operations with the Tanis® 4-inch Metal Hub Wheel Brush featuring CeramiX® Abrasive Filament. This innovative abrasive grain mineral ensures up to 5 times faster cutting action, making deburring and finishing tasks efficient and precise. With a tough and self-sharpening filament, this brush offers longevity and consistency in manufacturing processes. Suitable for high-temperature use, manual operations, and CNC machine attachments.
Product Specifications
Accessories

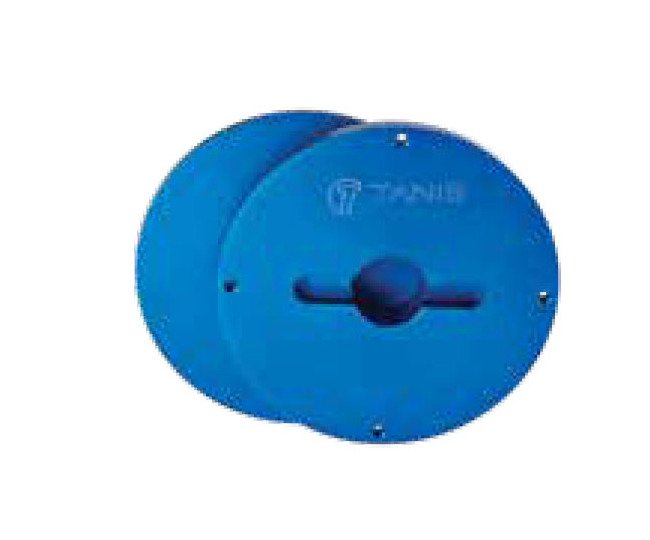

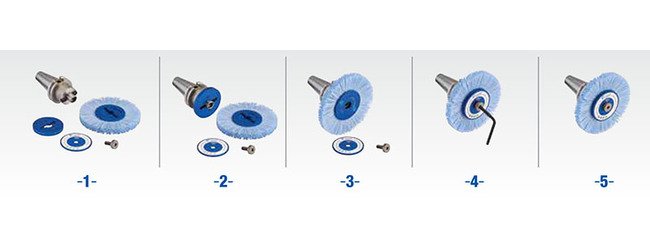

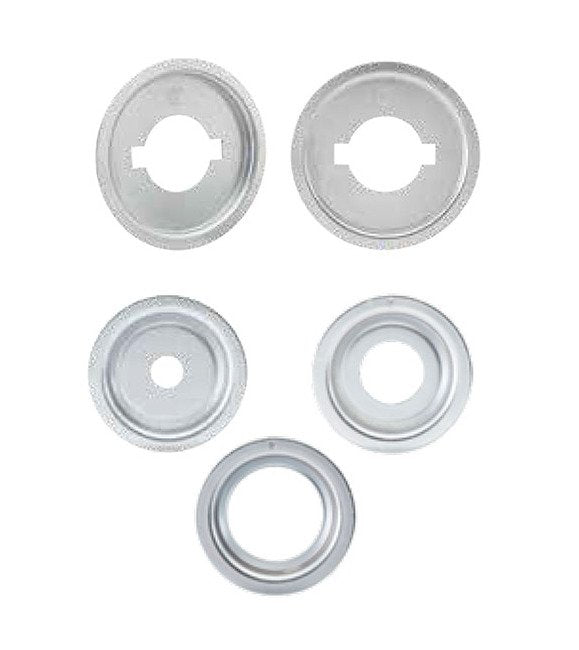

Wheel Brush Adapter Plates for CNC Machine Shell Mill HoldersTanis®’ Wheel Brush Adapter, designed by our engineering team to support automated deburring, allows simple attachment of wheel brushes to CNC machines. No hassle coupling is accomplished by placing the adapter plates on both sides of the wheel brush and securing the device with a bolt to the shell mill holder. Set screws prevent the brush from rotating.Part Number - 35900Face Width - StandardBrush Inside Diameter (ID) - 3/4 in.Pilot - 3/4 in.
Applications
Deburring Keyways, Slots and Machine Grooves in PartsDeburring Gear SplinesHoning and Finishing of Cylindrical BoresEdge RadiusingDeburring Seal Grooves in Turbine Engine Cases and Small Aerospace Parts
Benefits
Consistency in Manufacturing ProcessHigh Quality and Low CostMetal Hub Allows for High Temperature UseManual Operations
Industries
MachiningCastingMetal FinishingMachining CentersManual Operations
Note

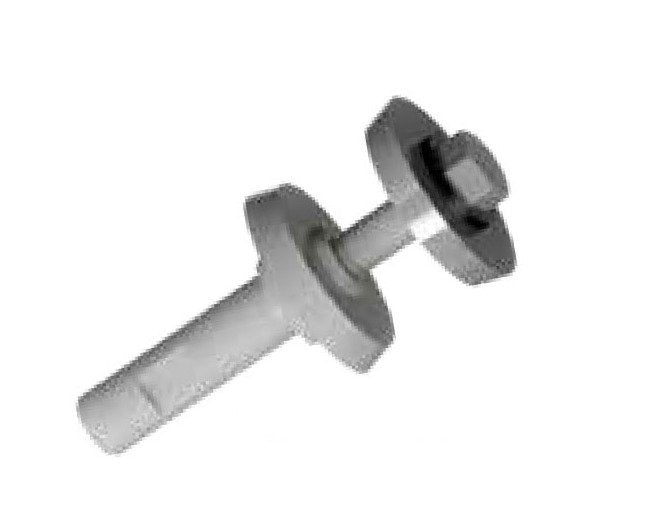

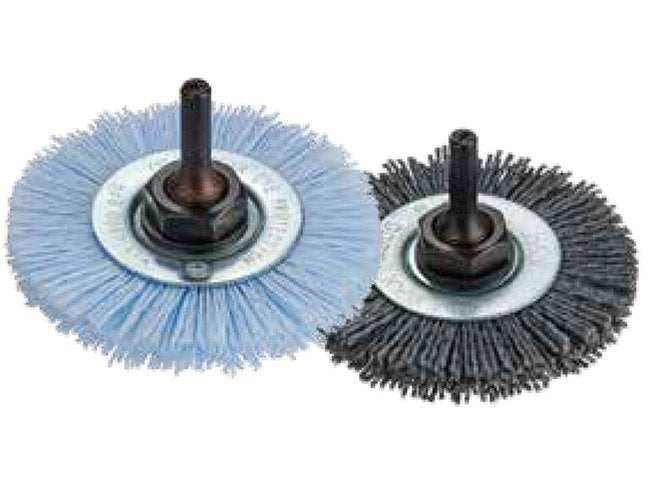

Drive arbors are available for collet mounting applications.
Specifications Arbor Hole Size
1/2 to 5/8 in
Specifications Brush Diameter
4 in
Specifications Face Width
0.500 in
Specifications Filament
CeramiX®
Specifications Filament Diameter
0.028 in
Specifications Hub Material
Galvanized Steel
Specifications Maximum Speed
4500 rpm
Specifications Size
120 grit
Specifications Trim Length
0.850 in
