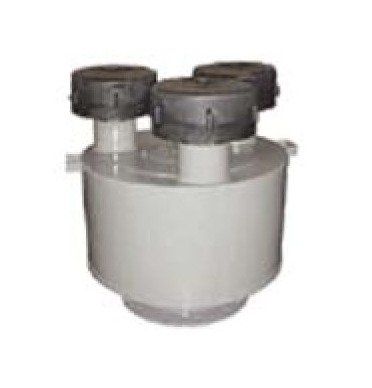

4 Inch Outlet Spinmeister Extreme Duty Inlet Air Filter
4 Inch Outlet Spinmeister Extreme Duty Inlet Air Filter
SKU:SPI-7ff1b2
Enhance filtration efficiency in high dust environments with the durable 4 Inch Spinmeister Air Filter for industrial applications.
Regular price
$289.99
Regular price
Sale price
$289.99
Unit price
per
Initiate Order
4 Inch Outlet Spinmeister Extreme Duty Inlet Air Filter
$289.99
Quantity: 1
Claim Your Seller Account
4 Inch Outlet Spinmeister Extreme Duty Inlet Air Filter
$289.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 4 Inch Outlet Spinmeister Extreme Duty Inlet Air Filter with Polyester Element is designed for extreme duty filtration in high dust environments, significantly extending the filter element's lifespan. With 85% efficiency at 15 microns, the centrifugal flow and pleated element ensure superior filtration. Constructed with durable composite material, it offers precision airflow for blowers, engines, fans, and industrial applications. This configurable product meets stringent institutional procurement standards, enhancing performance and durability for diverse industrial settings.
Product Specifications
Dimensions Dimension A
30-3/4 in
Dimensions Dimension B
4 in
Dimensions Dimension C
16 in
Dimensions Dimension Tolerance
1/4 in
Features And Specifications 0
Polyester: 99%+ removal efficiency standard to 5 micronPaper: 99%+ removal efficiency standard to 2 micronFilter housing has heavy gauge carbon steel base with low pressure drop bracket and outlet pipe designDurable carbon steel housing constructionAll small compact filters are a seamless drawn housingTemp (continuous): min -15 ºF (-26 ºC ) max 220 ºF (104 ºC )Filter change out differential: 10"-15" H20 over initial delta P
Option 0
Multiple Configurations AvailableSpinMeisters available in Polished AluminumVacuum Systems configurationsSelected Housings available in SSVarious Media for Element1/8" taps for pressure drop indicators on selected modelsMultiple connection types
Specifications Applications And Equipment
Blowers | Cement Industry | Engines | Fans | Foundries | Grain Elevators | Plastics Industry | Pneumatic Conveying Systems | Screw Compressors | Wood Chip, Paper and Pulp Industries
Specifications Approximate Weight
45 lb
Specifications Connection Style
Flange (FLG)
Specifications Element Material
Polyester
Specifications Note
Model offerings and design parameters may change without notice
Specifications Outlet Size
4 in
Specifications Rated Flow
500 scfm
Specifications Type
D
