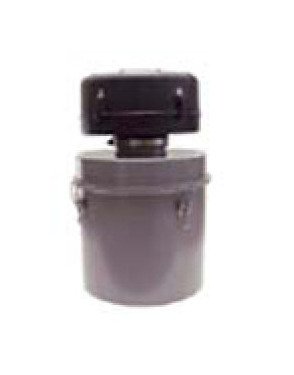

4 Inch Outlet Spinmeister Extreme Duty Inlet Air Filter with Paper Element
4 Inch Outlet Spinmeister Extreme Duty Inlet Air Filter with Paper Element
SKU:SPI-2cc35c
Enhance air quality in high dust environments with the 4 Inch Outlet Extreme Duty Air Filter, featuring superior efficiency and durability.
Regular price
$149.99
Regular price
Sale price
$149.99
Unit price
per
Initiate Order
4 Inch Outlet Spinmeister Extreme Duty Inlet Air Filter with Paper Element
$149.99
Quantity: 1
Claim Your Seller Account
4 Inch Outlet Spinmeister Extreme Duty Inlet Air Filter with Paper Element
$149.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 4 Inch Outlet Spinmeister Extreme Duty Inlet Air Filter with Paper Element is designed for high dust environments, offering superior filtration efficiency. Featuring a centrifugal flow that achieves 85% efficiency at 15 microns, this filter prolongs the element's lifespan. With a pleated 99%+ efficient element and a durable molded fiber filled composite Spinmeister Precleaner, this filter is ideal for blower, engine, fan, foundry, and pneumatic conveying system applications. Its heavy-gauge carbon steel construction ensures durability and low pressure drop for optimal performance. Customize this filter to suit specific equipment and industry needs.
Product Specifications
Dimensions Dimension A
20-5/8 in
Dimensions Dimension B
4 in
Dimensions Dimension C
11 in
Dimensions Dimension Tolerance
1/4 in
Features And Specifications 0
Polyester: 99%+ removal efficiency standard to 5 micronPaper: 99%+ removal efficiency standard to 2 micronFilter housing has heavy gauge carbon steel base with low pressure drop bracket and outlet pipe designDurable carbon steel housing constructionAll small compact filters are a seamless drawn housingTemp (continuous): min -15 ºF (-26 ºC ) max 220 ºF (104 ºC )Filter change out differential: 10"-15" H20 over initial delta P
Option 0
Multiple Configurations AvailableSpinMeisters available in Polished AluminumVacuum Systems configurationsSelected Housings available in SSVarious Media for Element1/8" taps for pressure drop indicators on selected modelsMultiple connection types
Specifications Applications And Equipment
Blowers | Cement Industry | Engines | Fans | Foundries | Grain Elevators | Plastics Industry | Pneumatic Conveying Systems | Screw Compressors | Wood Chip, Paper and Pulp Industries
Specifications Approximate Weight
33 lb
Specifications Connection Style
Male Pipe Thread (MPT)
Specifications Element Material
Paper
Specifications Note
Model offerings and design parameters may change without notice
Specifications Outlet Size
4 in
Specifications Rated Flow
400 scfm
Specifications Type
C
