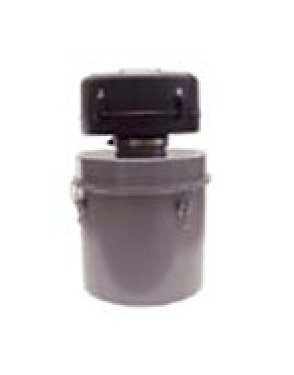

4 Inch Outlet Spinmeister Extreme Duty Inlet Air Filter with Polyester Element - High Dust Filtration Solution

Name: 4 Inch Outlet Spinmeister Extreme Duty Inlet Air Filter with Polyester Element - High Dust Filtration Solution
Brand: Marcuse & Son, Inc.
SKU: SPI-366b33
Price: 299.99 USD
Availability: OutOfStock

SKU:SPI-366b33

Efficiently filter high dust environments with the Spinmeister Extreme Duty Inlet Air Filter - 85% efficiency at 15 microns or larger, durable construction.

$299.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The 4 Inch Outlet Spinmeister Extreme Duty Inlet Air Filter is engineered for extreme duty filtration in high dust environments, enhancing filter element lifespan significantly. This innovative design achieves 85% efficiency at 15 microns or larger, featuring a centrifugal flow that forces particulate through side louvers. The air stream is then filtered by a 99%+ efficient pleated polyester element. Constructed with durable molded fiber composite material, this configurable product can be tailored to specific applications, making it an ideal choice for Blowers, Cement Industry, Engines, Fans, Foundries, and more.

Product Specifications

Dimensions Dimension A

19-3/4 in

Dimensions Dimension B

4 in

Dimensions Dimension C

11 in

Dimensions Dimension Tolerance

1/4 in

Features And Specifications 0

Polyester: 99%+ removal efficiency standard to 5 micronPaper: 99%+ removal efficiency standard to 2 micronFilter housing has heavy gauge carbon steel base with low pressure drop bracket and outlet pipe designDurable carbon steel housing constructionAll small compact filters are a seamless drawn housingTemp (continuous): min -15 ºF (-26 ºC ) max 220 ºF (104 ºC )Filter change out differential: 10"-15" H20 over initial delta P

Option 0

Multiple Configurations AvailableSpinMeisters available in Polished AluminumVacuum Systems configurationsSelected Housings available in SSVarious Media for Element1/8" taps for pressure drop indicators on selected modelsMultiple connection types

Specifications Applications And Equipment

Specifications Approximate Weight

35 lb

Specifications Connection Style

Flange (FLG)

Specifications Element Material

Polyester

Specifications Note

Model offerings and design parameters may change without notice

Specifications Outlet Size

4 in

Specifications Rated Flow

250 scfm

Specifications Type

4 Inch Outlet Spinmeister Extreme Duty Inlet Air Filter with Polyester Element - High Dust Filtration Solution
