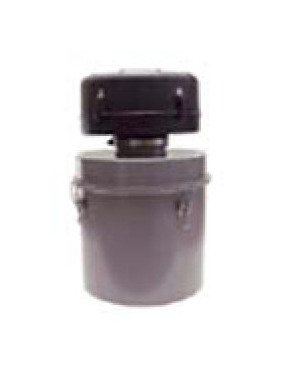

The 4 Inch Spinmeister Extreme Duty Inlet Air Filter with Paper Element is engineered for high dust environments, significantly extending the filter element lifespan. With 85% efficiency at 15 microns or larger, the unique centrifugal flow channels particulate through side louvers before filtering through a 99%+ efficient pleated element. Built with durable carbon steel housing, this configurable unit is ideal for Blowers, Cement Industry, Engines, Fans, Foundries, Grain Elevators, Plastics Industry, and more. Experience superior filtration performance and longevity with this advanced air filter.
Product Specifications
Dimensions Dimension A
20-5/8 in
Dimensions Dimension B
4 in
Dimensions Dimension C
11 in
Dimensions Dimension Tolerance
1/4 in
Features And Specifications 0
Polyester: 99%+ removal efficiency standard to 5 micronPaper: 99%+ removal efficiency standard to 2 micronFilter housing has heavy gauge carbon steel base with low pressure drop bracket and outlet pipe designDurable carbon steel housing constructionAll small compact filters are a seamless drawn housingTemp (continuous): min -15 ºF (-26 ºC ) max 220 ºF (104 ºC )Filter change out differential: 10"-15" H20 over initial delta P
Option 0
Multiple Configurations AvailableSpinMeisters available in Polished AluminumVacuum Systems configurationsSelected Housings available in SSVarious Media for Element1/8" taps for pressure drop indicators on selected modelsMultiple connection types
Specifications Applications And Equipment
Blowers | Cement Industry | Engines | Fans | Foundries | Grain Elevators | Plastics Industry | Pneumatic Conveying Systems | Screw Compressors | Wood Chip, Paper and Pulp Industries
Specifications Approximate Weight
36 lb
Specifications Connection Style
Flange (FLG)
Specifications Element Material
Paper
Specifications Note
Model offerings and design parameters may change without notice
Specifications Outlet Size
4 in
Specifications Rated Flow
400 scfm
Specifications Type
C
