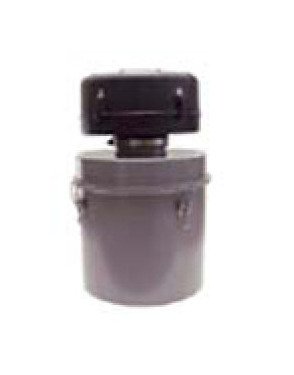

4 Inch Spinmeister Extreme Duty Inlet Air Filter with Polyester Element
4 Inch Spinmeister Extreme Duty Inlet Air Filter with Polyester Element
SKU:SPI-bddacd
Enhance air quality in high dust environments with the 4 Inch Spinmeister Extreme Duty Inlet Air Filter. Durable construction, high efficiency, configurable options.
Regular price
$249.99
Regular price
Sale price
$249.99
Unit price
per
Initiate Order
4 Inch Spinmeister Extreme Duty Inlet Air Filter with Polyester Element
$249.99
Quantity: 1
Claim Your Seller Account
4 Inch Spinmeister Extreme Duty Inlet Air Filter with Polyester Element
$249.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 4 Inch Spinmeister Extreme Duty Inlet Air Filter with Polyester Element is designed to deliver extreme duty filtration performance in high dust environments, significantly extending the lifespan of the filter element. Featuring a centrifugal flow mechanism that achieves 85% efficiency at 15 microns or larger, this filter ensures optimal air quality. The 99%+ efficient pleated polyester element guarantees superior filtration. Built with a durable molded fiber-filled composite material, the Spinmeister- Precleaner offers configurable options to tailor the unit to specific applications. Ideal for various equipment like blowers, engines, and pneumatic conveying systems, this filter boasts heavy-gauge carbon steel housing construction and meets rigorous industry standards.
Product Specifications
Dimensions Dimension A
20-5/8 in
Dimensions Dimension B
4 in
Dimensions Dimension C
11 in
Dimensions Dimension Tolerance
1/4 in
Features And Specifications 0
Polyester: 99%+ removal efficiency standard to 5 micronPaper: 99%+ removal efficiency standard to 2 micronFilter housing has heavy gauge carbon steel base with low pressure drop bracket and outlet pipe designDurable carbon steel housing constructionAll small compact filters are a seamless drawn housingTemp (continuous): min -15 ºF (-26 ºC ) max 220 ºF (104 ºC )Filter change out differential: 10"-15" H20 over initial delta P
Option 0
Multiple Configurations AvailableSpinMeisters available in Polished AluminumVacuum Systems configurationsSelected Housings available in SSVarious Media for Element1/8" taps for pressure drop indicators on selected modelsMultiple connection types
Specifications Applications And Equipment
Blowers | Cement Industry | Engines | Fans | Foundries | Grain Elevators | Plastics Industry | Pneumatic Conveying Systems | Screw Compressors | Wood Chip, Paper and Pulp Industries
Specifications Approximate Weight
33 lb
Specifications Connection Style
Male Pipe Thread (MPT)
Specifications Element Material
Polyester
Specifications Note
Model offerings and design parameters may change without notice
Specifications Outlet Size
4 in
Specifications Rated Flow
400 scfm
Specifications Type
C
