4 Inch Stainless Steel Flanged Duplex Strainer
4 Inch Stainless Steel Flanged Duplex Strainer
SKU:DUP-0ab40e
Keep pipelines clean and protected with the 4 Inch Stainless Steel Flanged Duplex Strainer by Sure Flow. Easy maintenance, uninterrupted flow, and ISO 9001:2008 compliant.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
4 Inch Stainless Steel Flanged Duplex Strainer
$349.99
Quantity: 1
Claim Your Seller Account
4 Inch Stainless Steel Flanged Duplex Strainer
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

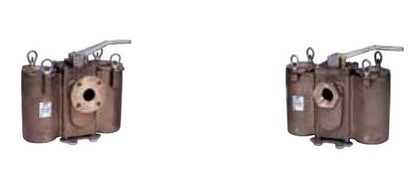

The 4 Inch Stainless Steel Flanged Duplex Strainer by Sure Flow is a vital component for removing dirt and debris from pipelines in a hassle-free manner. With a unique flow diverter valve cartridge design, this strainer prevents fluid bypass and ensures uninterrupted flow. Its easy-to-turn handle diverts flow between chambers, indicating which one is in service at all times. Maintenance is simplified with no special tools required for strainer basket access, while the dynamic diverter cartridge seals prevent fluid bypass for easy servicing. This duplex strainer meets International Organization for Standardization (ISO) 9001:2008 standards, offering reliability and performance for institutional and government buyers.
Product Specifications
Additional Information Additional Information

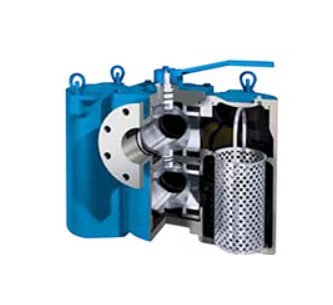

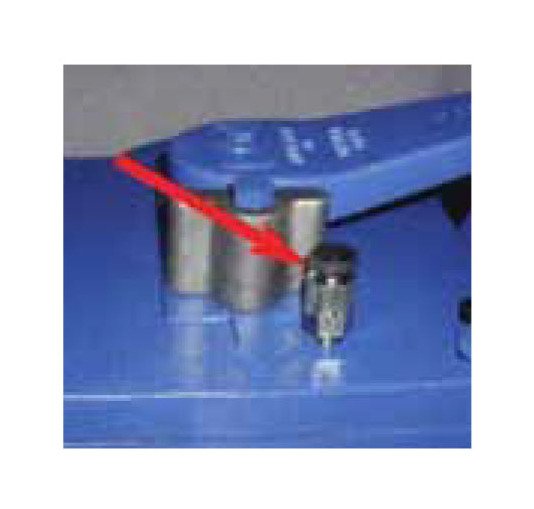

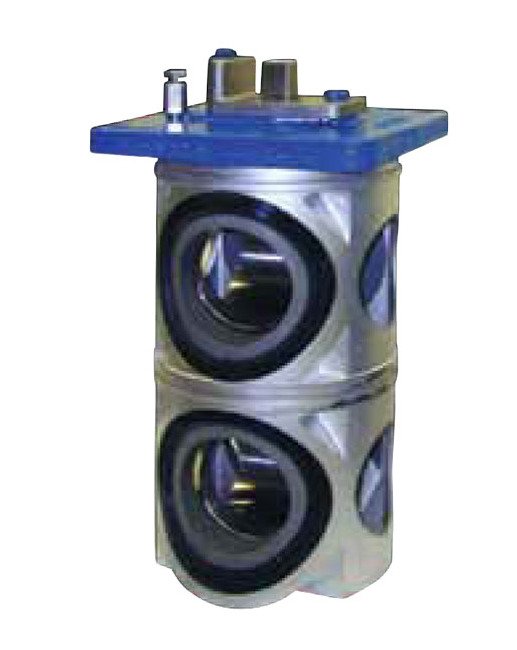

A unique flow diverter valve cartridge design isolates the two strainer basket chambers and prevents fluid bypass. An easy-to-turn handle operates the cartridge and diverts the system flow from one chamber to the other - the flow in the pipeline is never shut off.When a strainer basket needs to be cleaned, the lever handle is turned to take it out of service and to divert the flow through the other chamber. The position of the handle clearly indicates at all times which chamber is in service.No special tools are needed to access the strainer basket for cleaning. The chamber is first drained and then the cover is lifted and swung clear of the chamber opening. The dynamic diverter cartridge seals prevent fluid bypass into the out-of-service chamber- making for easy, hassle-free strainer basket servicing.A minimum of parts, easily replaced, makes service a snap. Exploded view shows simplicity of design.Should the diverter valve require service, it slides right out the top of the strainer body.Standard body vent on top of strainer makes venting quick and easy.
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Manufacturer reserves the right to modify dimensions, materials, or design. Please contact Sure Flow Equipment Inc. for certifications.
Specifications American Society Of Mechanical Engineers Asme Cl1
200 psig
Specifications Body And Cartridge Material
Stainless Steel (SS)
Specifications Connection Type
Flanged (F)
Specifications Diverted Ball Material
Stainless Steel
Specifications Prefix Size
0400
Specifications Screen Opening
156 in
Specifications Seat Material
Polytetrafluoroethylene (PTFE)/Buna N
Specifications Size
4 in
