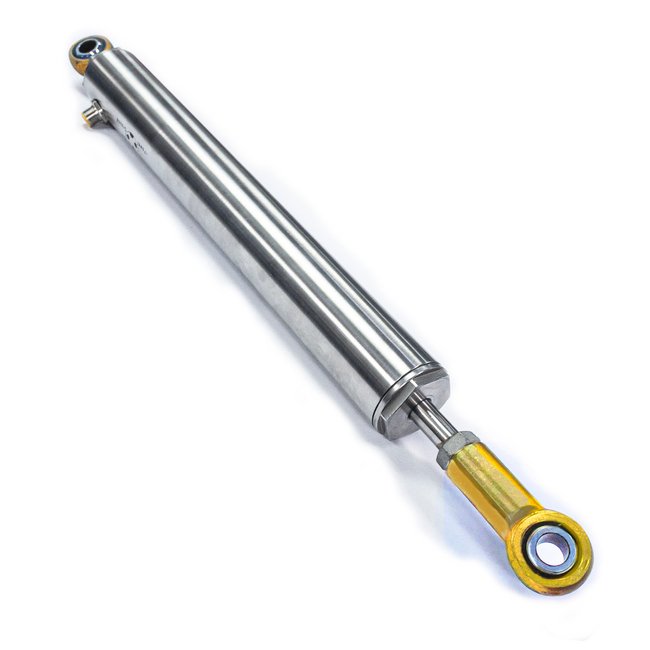

4-Inch Stroke Linear Potentiometer Sensor, 0-10V DC Output, 45mm OD
4-Inch Stroke Linear Potentiometer Sensor, 0-10V DC Output, 45mm OD
SKU:LIN-437c17
High-precision 4" Stroke Linear Potentiometer Sensor with 0-10V DC Output & CE Approval
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
4-Inch Stroke Linear Potentiometer Sensor, 0-10V DC Output, 45mm OD
$129.99
Quantity: 1
Claim Your Seller Account
4-Inch Stroke Linear Potentiometer Sensor, 0-10V DC Output, 45mm OD
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 4-Inch Stroke Linear Potentiometer Replacement Sensor is a high-precision device designed for accurate position sensing. With a 0-10V DC output, stainless steel body, and radial M12 connector type, it ensures reliable performance in diverse industrial applications. This sensor, approved for European Conformity (CE), offers exceptional linearity (<0.25% of Full Scale) and resolution (0.025% of Full Scale). Operating within a wide temperature range (-40 to 105 ºC), it guarantees consistent and dependable measurements. Upgrade your system with this Alliance Sensors Group product known for quality and durability.
Product Specifications
Technical Specs Brands
Alliance Sensors Group
Technical Specs Connector Type
Radial M12
Technical Specs European Conformity Ce Approved
Yes
Technical Specs Linearity
<0.25 % of Full Scale
Technical Specs Material
Stainless Steel Body
Technical Specs Output Direct Current Dc Voltage
0 to 10 V
Technical Specs Outside Diameter
45 mm
Technical Specs Range
4 in
Technical Specs Resolution
0.025 % of Full Scale
Technical Specs Stroke
4 in
Technical Specs Temperature Range
-40 to 105 ºC
Technical Specs Type
Rod Ends
Technical Specs Update Rate
300 Hz
