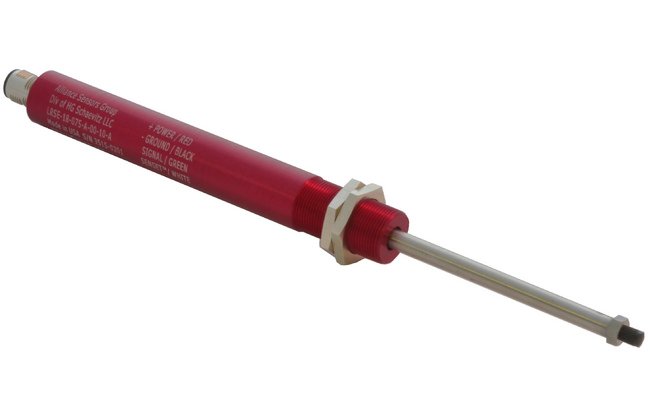

4 Inch Stroke Spring Loaded Linear Sensor
4 Inch Stroke Spring Loaded Linear Sensor
SKU:SPR-23f3ab
High-precision aluminum linear sensor with 4in stroke, 4-20mA output current range, CE approved. Ideal for industrial applications.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
4 Inch Stroke Spring Loaded Linear Sensor
$129.99
Quantity: 1
Claim Your Seller Account
4 Inch Stroke Spring Loaded Linear Sensor
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 4 Inch Stroke Spring Loaded Linear Sensor by Alliance Sensors Group is a high-precision device crafted with an aluminum body, ideal for industrial applications. With a 4 to 20 mA output current range, this sensor offers exceptional linearity (<0.25% of full scale) and a resolution of 0.025% of full scale. Operating seamlessly in temperatures ranging from -20 to 85 ºC, this sensor guarantees accuracy and reliability. The CE approval ensures compliance with European standards, making it a trusted choice for institutional and government procurement.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Technical Specs Brands
Alliance Sensors Group
Technical Specs Cable Type
Axial
Technical Specs European Conformity Ce Approved
Yes
Technical Specs Linearity
<0.25 % of Full Scale
Technical Specs Material
Aluminum Body
Technical Specs Output Current
4 to 20 mA
Technical Specs Outside Diameter
3/4 in
Technical Specs Range
4 in
Technical Specs Resolution
0.025 % of Full Scale
Technical Specs Sensor Type
Spring Loaded
Technical Specs Size
3/4 in
Technical Specs Stroke
4 in
Technical Specs Temperature Range
-20 to 85 ºC
Technical Specs Termination
1 m Cable
Technical Specs Update Rate
300 Hz
