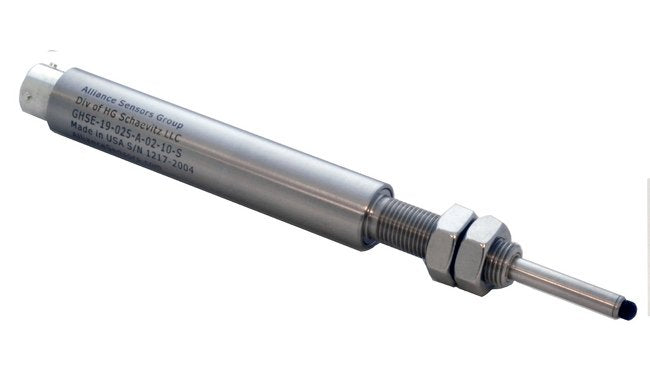

The 4-Inch Stroke Stainless Steel Spring Loaded Linear Sensor by Alliance Sensors Group offers precise measurement capabilities with a stroke range of 4 inches and an output current of 4 to 20 mA. Crafted from durable stainless steel, this sensor operates within a temperature range of -20 to 85 ºC with remarkable linearity (<0.25% of Full Scale) and high resolution (0.025% of Full Scale). Approved for European Conformity (CE), this sensor boasts an update rate of 300 Hz, an outside diameter of 3/4 inch, and features an axial Power Take-Off (PTO) connector type.
Product Specifications
Technical Specs Brands
Alliance Sensors Group
Technical Specs Connector Type
Axial Power Take-Off (PTO)
Technical Specs European Conformity Ce Approved
Yes
Technical Specs Linearity
<0.25 % of Full Scale
Technical Specs Material
Stainless Steel Body
Technical Specs Output Current
4 to 20 mA
Technical Specs Outside Diameter
3/4 in
Technical Specs Range
4 in
Technical Specs Resolution
0.025 % of Full Scale
Technical Specs Sensor Type
Spring Loaded
Technical Specs Size
3/4 in
Technical Specs Stroke
4 in
Technical Specs Temperature Range
-20 to 85 ºC
Technical Specs Update Rate
300 Hz
