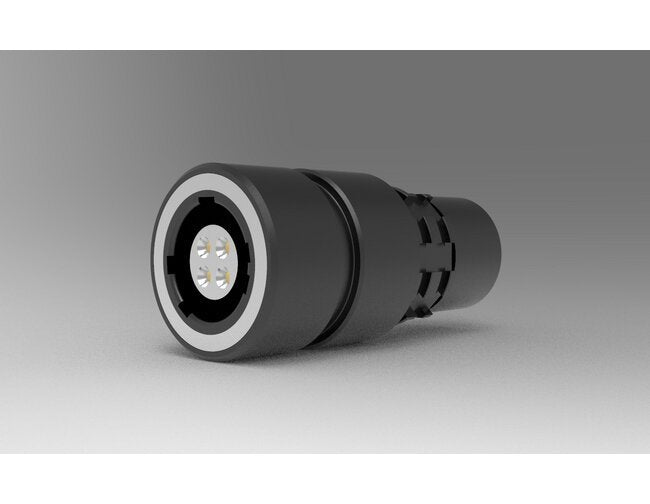

4-Point In-Line Receptacle Ranger Connector
4-Point In-Line Receptacle Ranger Connector
SKU:RAN-bab0b8
Secure and reliable 4-Point In-Line Receptacle Connector for various applications. Ideal for Military, Defense, and more.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
4-Point In-Line Receptacle Ranger Connector
$29.99
Quantity: 1
Claim Your Seller Account
4-Point In-Line Receptacle Ranger Connector
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 4-Point In-Line Receptacle Ranger Connector from the Standard Ranger series offers a reliable solution for various applications. With 4 contacts, PEEK insulator material, and a Cu-alloy with gold finish, this connector ensures secure connections at 7A current rate and 300V voltage. Operating between -51 to 125°C, it boasts Ingress Protection (IP6K8/ IP6K9K) and durable aluminum with ruthenium finish. Choose Ranger for superior performance and ease of use in Military, Defense, Telecommunications, Aviation, and beyond.
Product Specifications
Dont Miss The New Connector From Amphenol Nexus Technologies Don
Amphenol NEXUS Technologies produces some of the best connectors today. Our Ranger connectors are designed for high-performance applications and will meet your industry's requirements.
Specifications Alternative Part
K10YAR-P04X FG0-0000
Specifications Cable Diameter
3 to 5.5 mm
Specifications Contact Diameter
0.7 mm
Specifications Contact Finish
Cu-Alloy with Gold Finish
Specifications Contact Type
Sockets
Specifications Current Rate
7 A
Specifications Degree Of Protection
Ingress Protection (IP6K8) | Ingress Protection (IP6K9K)
Specifications Insulator Material
Polyetheretherketone (PEEK)
Specifications Keying
Brown
Specifications Mating Cycles
5000
Specifications Number Of Contacts
4
Specifications Operating Temperature
-51 to 125 ºC
Specifications Shell Finish
Aluminum with Ruthenium Finish
Specifications Size
0
Specifications Termination Diameter
0.85 mm
Specifications Termination Type
Solder
Specifications Type Of Connector
In-Line Receptacle
Specifications Voltage
300 V
Specifications Wire Cross Section
22 AWG
The Difference Between High Density And Standard Variations The
Both products have the same features, such as contact types, insulator material, keying, termination type, degree of protection, operating temperature, shell finish, and mating cycle. However, they have some differences that may affect the connectorâs performance. The differences between the two products:Voltage: Standard variations have voltages between 200V, 300V, 333V, and 450V, while High-Density only has voltage available in 250V.The number of contacts: Standard deviations have 3, 4, 5, 7, 8, 9, 10, 14, and 16 options, while High-Density only has 9, 12, 16, and 27.Data transmission: For Standard, USB 2.0 (480 Mbit/s) is available for NX-G80YAR-P04WFG0-000L and NX-A10YAR-P04XFG0-0000. You can also choose from USB 2.0 (480 Mbit/s) + Power, USB 3.2 Gen 1 x 1 (5 Gbit/s), HDMI 1.3 (8.13 Gbit/s), USB 2.0 (480 Mbit/s) + Power for High-Density. The rest is N/A.Contact diameter: Standard has a contact diameter of 0.5 mm, 0.7 mm, and 0.9 mm, while High-Density offers 3 x 0.3 mm, 6 x 0.7 mm, 10 x 0.3 mm. 2 x 0.7 mm, and 0.3 mm.Contact finish: Standard and High-Density are both Cu-alloy with gold finish.Current rate: High-Density offers a current rate of 1A and 5A for its products. On the other hand, Standard has 5A and 10A available. (to keep the same flow I would switch the order, standard first and HD second.)
Why Should You Opt For The New Ranger Connectors Why Should You
Our new and improved Ranger connectors are made with quality materials by our highly-skilled technicians. It features excellent electrical performance, a secure connection, and is easy to use. Even though we work primarily with the Military and Defense, Telecommunications, and Commercial Aviation sectors, Ranger is applicable for different applications in other industries. Versatility is the main benefit of Ranger connectors. So for more superior projects, it's the ideal option that you must consider. So if you're looking for a connector that can enhance your operation's efficiency, choose Ranger and find out what it offers.
