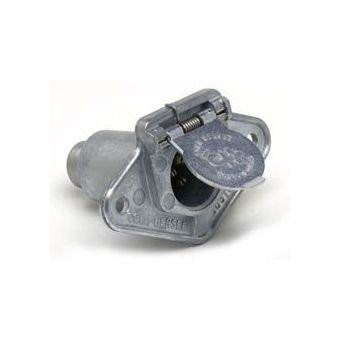

4-Pole Sockets with Protective Housing for Trailers and RVs

Name: 4-Pole Sockets with Protective Housing for Trailers and RVs
Brand: Marsh Electronics, Inc.
SKU: 4PO-e53a0a
Price: 24.99 USD
Availability: OutOfStock

SKU:4PO-e53a0a

Durable 4-Pole Sockets for trailers & RVs with secure plug locks & brass contacts.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The 4-Pole Sockets with Protective Housing is designed for trailers requiring limited functionality like taillights and brake lights, making it ideal for boat trailers or RVs towing a car on a flatbed. With a durable die-cast zinc housing, replaceable interiors, and brass split-pin contacts ensuring proper contact and minimal voltage drop, this socket offers reliability and longevity. Featuring screw terminals accepting up to 12 AWG wire and spring-loaded socket doors with secure plug locks, installation and usage are hassle-free. Compliant with federal procurement and industry standards, this product is a dependable choice for both institutional and consumer needs.

Product Specifications

Additional Information Additional Information

Spring-loaded socket doors plug locks securely into the opening. Wiring codes are identified on the insulator. Two mounting holes on the flange 17/64 (6.7 mm) diameter 2-15/16 (74.6 mm) on centers. Mount through 1-3/8 (34.9 mm) diameter hole. With special

Specifications Contact Material

Brass

Specifications Current At 12 Volt V Voltage

25 A

Specifications Current At 24 Volt V Voltage

15 A

Specifications Housing

Die Cast Zinc

Specifications Series

1 to 6 Pole Connectors

Specifications Wire Size

12 AWG
