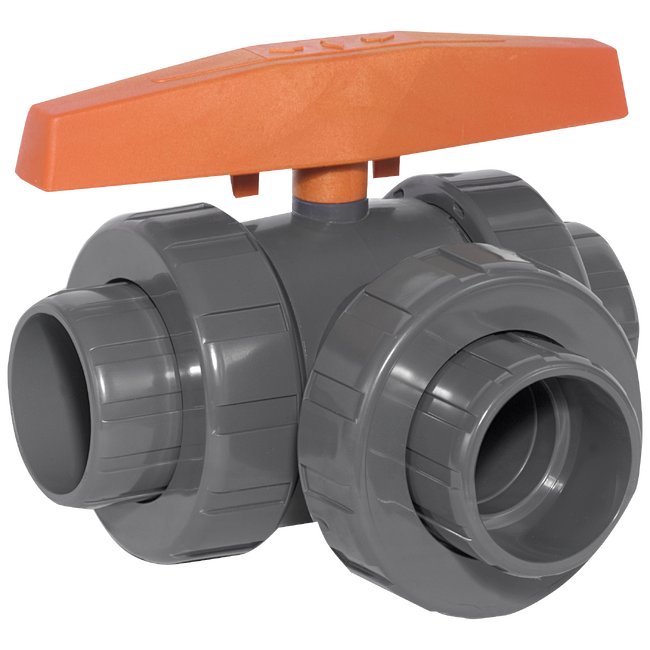

4" PVC 3-Way Lateral True Union Ball Valve with Flanged End Connections

Name: 4" PVC 3-Way Lateral True Union Ball Valve with Flanged End Connections
Brand: Hayward Flow Control
SKU: TRU-67a2ce
Price: 75.99 USD
Availability: OutOfStock

SKU:TRU-67a2ce

Versatile 4" PVC 3-Way Lateral True Union Ball Valve with EPDM o-rings and flanged end connections for precise flow control.

$75.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The 4" PVC 3-Way Lateral True Union Ball Valve from our LA Series offers versatile flow control with the ability to divert flow from the center port to either the left or right ports. Featuring durable EPDM o-rings and flanged end connections, this valve is built for reliable performance. With a body material of PVC, this valve is designed to handle pressures up to 150PSI, meeting the stringent requirements of institutional and government procurements. Its precise dimensions ensure a perfect fit, and the Cv Factor of 450 underscores its efficiency.

Product Specifications

Specifications A

8.56 in | 217.42 mm

Specifications B

7.00 in | 177.80 mm

Specifications Body Material

PVC

Specifications C

9.33 in | 236.98 mm

Specifications Cv Factor

450

Specifications E

10.50 in | 266.70 mm

Specifications End Connection

Flanged

Specifications F

10.44 in | 265.18 mm

Specifications G

18.88 in | 479.55 mm

Specifications H

6.85 in | 173.99 mm

Specifications Seals

EPDM

Specifications Size

4" PVC 3-Way Lateral True Union Ball Valve with Flanged End Connections
