4" PVC Expansion Joint with O-Ring - Socket x Spigot, UL Certified
4" PVC Expansion Joint with O-Ring - Socket x Spigot, UL Certified
SKU:PVC-d1879f
Durable 4" PVC Expansion Joint with O-Ring for aboveground applications. UL Certified.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
4" PVC Expansion Joint with O-Ring - Socket x Spigot, UL Certified
$29.99
Quantity: 1
Claim Your Seller Account
4" PVC Expansion Joint with O-Ring - Socket x Spigot, UL Certified
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 4 Inch PVC Expansion Joint with O-Ring is a durable solution for aboveground applications. Manufactured by Champion Fiberglass®, Inc., this expansion joint meets Underwriters Laboratories (UL) standards for quality and safety. With a standard wall thickness and a simple socket x spigot design, it ensures easy installation and reliable performance. Suitable for fiberglass conduit systems, this expansion joint is designed to accommodate expansion requirements in ducts exceeding 50 feet. Each joint features a yellow line for precise installation. Ensure longevity and efficiency in your conduit system with this trusted expansion joint.

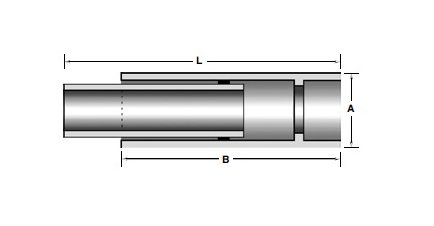

Product Specifications
Dimesional Attributes A
4.61 in | 117 mm
Dimesional Attributes B
12 in | 305 mm
Dimesional Attributes L Max
23 in | 584 mm
Dimesional Attributes L Min
15 in | 381 mm
Dimesional Attributes Nominal Size
4 in
Features
Most Commonly used.
Installation Of Expansion Joints
When the duct is shorter than 50 ft., no Expansion Joint neededWhen the duct is between 50 ft. up to 200 ft., install one Expansion Joint at the mid pointIf the duct is longer than 200 ft., install one Expansion Joint every 200 ft. apart
Note
All Expansion Joints have a yellow line on the nipple end of the joint for proper installation.
Specifications Brand
Champion Fiberglass®, Inc.
Specifications Color
Black
Specifications Industry Standardscertifications
Underwriters Laboratories (UL)
Specifications Style
Expansion
Specifications Type
Iron Pipe Size (IPS) Aboveground Single Expansion Joint with O-Ring
Specifications Wall Thickness
Standard Wall
Specifications Weight
0.75 kg | 1.66 lb
